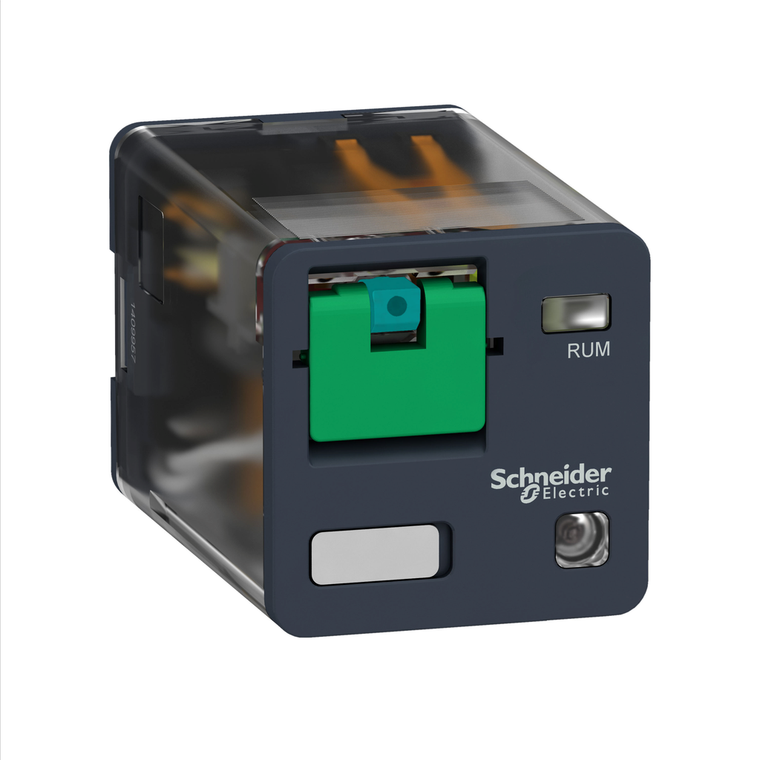

Schneider Electric RUMC32GD 3Co 10A Relay Cylind +Ltb+Led 125Vdc

(No reviews yet) Write a Review
SKU:
RUMC32GD
UPC:
3.60648E+12
Condition:
New
Test Levels:
level A group mounting
Maximum Switching Capacity:
2500 VA/280 W
Load Current:
10 A 250 V AC || 10 A 28 V DC
Utilisation Coefficient:
0.2
Net Weight:
0.086 kg
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Operating Position:
any position
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Protection Category:
RT I
Rated Operational Voltage Limits:
100...137.5 V DC
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Maximum Switching Voltage:
250 V IEC
Average Resistance:
9766 Ohm 20 °C +/- 10 %
Reset Time:
20 ms at nominal voltage
[Uc] Control Circuit Voltage:
125 V DC
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Product Or Component Type:
plug-in relay
Ambient Air Temperature For Operation:
-40-55 °C
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Contacts Material:
AgNi
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
Standards:
CSA C22.2 No 14 || UL 508 || IEC 61810-1
Environmental Disclosure:
ENVPEP1406038EN
Circularity Profile:
N/A
Ambient Air Temperature For Storage:
-40-85 °C
Average Coil Consumption:
1.4 W
Range Of Product:
Harmony Electromechanical Relays
Device Presentation:
complete product
Safety Reliability Data:
B10d = 100000
Shape Of Pin:
cylindrical
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
China Rohs Regulation:
X
Mechanical Durability:
5000000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Control Type:
lockable test button
Pollution Degree:
2
Operating Time:
20 ms at nominal voltage
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Status Led:
with
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Ip Degree Of Protection:
IP40
Device Short Name:
RUM
Product Certifications:
EAC || CSA || UL
Electrical Durability:
100000 cycles resistive
Sustainable Offer Status:
Green Premium product
Contacts Type And Composition:
3 C/O
Series Name:
Universal
Rohs Exemption Information:
Yes
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Catalog:
View
Datasheet:
View
$15.25

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 125V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
