Schneider Electric

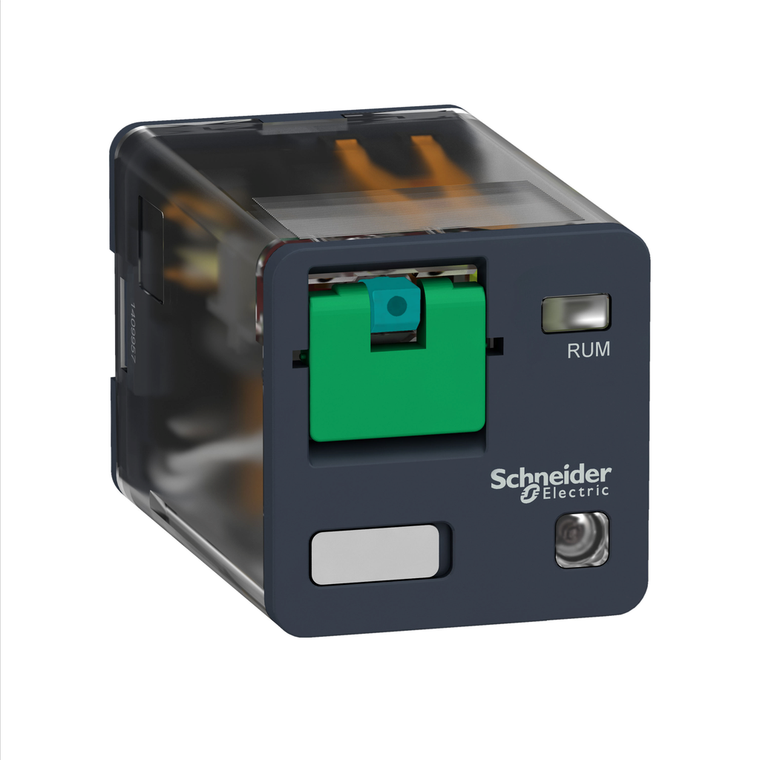

Schneider Electric RUMC32JD 3Co 10A Relay Cylind +Ltb+Led 12Vdc Pack of 10

(No reviews yet) Write a Review
SKU:
RUMC32JD
UPC:
3606480626999
Condition:
New
Electrical Durability:
100000 cycles resistive
Environmental Disclosure:
ENVPEP1406038EN
Pollution Degree:
2
Maximum Switching Capacity:
2500 VA/280 W
Average Resistance:
120 Ohm 20 °C +/- 15 %
Range Of Product:
Harmony Electromechanical Relays
Rohs Exemption Information:
Yes
Product Certifications:
UL || CSA || EAC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Maximum Switching Voltage:
250 V IEC
Test Levels:
level A group mounting
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Utilisation Coefficient:
0.2
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Ip Degree Of Protection:
IP40
Shape Of Pin:
cylindrical
Ambient Air Temperature For Operation:
-40-55 °C
Contacts Material:
AgNi
Circularity Profile:
N/A
Rated Operational Voltage Limits:
9.6...13.2 V DC
Contacts Type And Composition:
3 C/O
Operating Time:
20 ms at nominal voltage
China Rohs Regulation:
X
Device Short Name:
RUM
Protection Category:
RT I
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Minimum Switching Capacity:
170 mW 10 mA, 17 V
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
Series Name:
Universal
Ambient Air Temperature For Storage:
-40-85 °C
Average Coil Consumption:
1.4 W
Status Led:
with
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Net Weight:
0.086 kg
Reach Free Of Svhc:
Yes
Control Type:
lockable test button
Device Presentation:
complete product
Safety Reliability Data:
B10d = 100000
[Uc] Control Circuit Voltage:
12 V DC
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Load Current:
10 A 250 V AC || 10 A 28 V DC
Operating Position:
any position
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Product Or Component Type:
plug-in relay
Reset Time:
20 ms at nominal voltage
Mechanical Durability:
5000000 cycles
Standards:
IEC 61810-1 || UL 508 || CSA C22.2 No 14
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Catalog:
View
Datasheet:
View
$152.50

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
