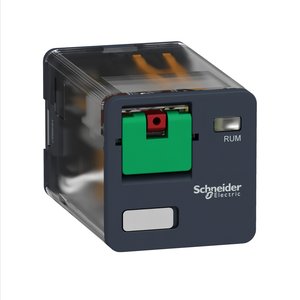

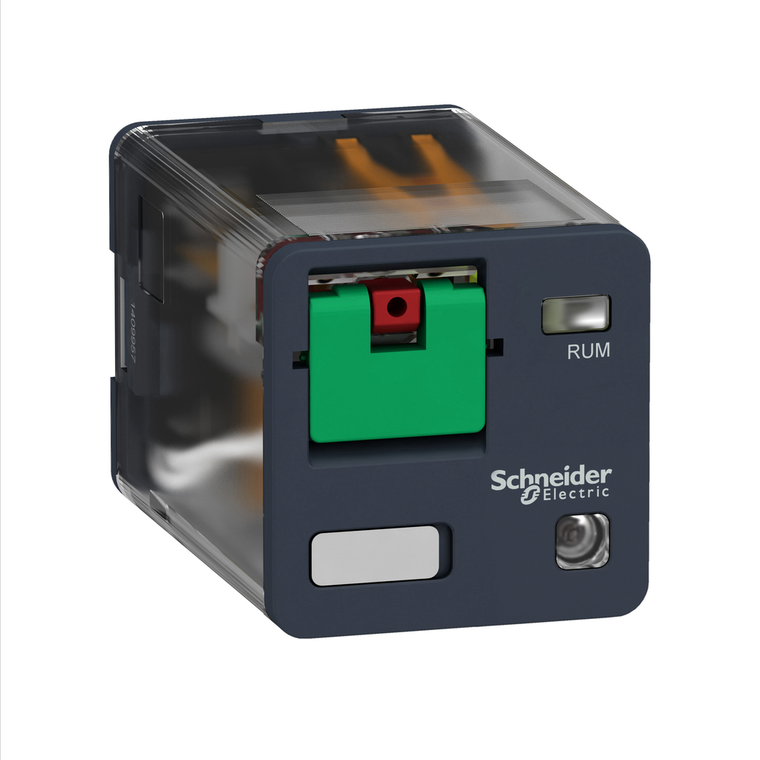

Schneider Electric RUMC32P7 3Co 10A Relay Cylind +Ltb+Led 230Vac Pack of 10

Schneider Electric RUMC32P7 3Co 10A Relay Cylind +Ltb+Led 230Vac Pack of 10

Schneider Electric
SKU:
RUMC32P7
|
UPC:
3606480627019
$152.50
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Additional Information
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Ambient Air Temperature For Operation:
-40-55 °C
Product Or Component Type:
plug-in relay
Reach Regulation:
Free of Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Load Current:
10 A 250 V AC || 10 A 28 V DC
Net Weight:
0.086 kg
Electrical Durability:
100000 cycles resistive
Product Certifications:
EAC || CSA || UL
Maximum Switching Voltage:
250 V IEC
Operating Time:
20 ms at nominal voltage
Mechanical Durability:
5000000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Operating Position:
any position
Utilisation Coefficient:
0.2
Device Presentation:
complete product
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1406038EN
Device Short Name:
RUM
Contacts Type And Composition:
3 C/O
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Minimum Switching Capacity:
170 mW 10 mA, 17 V
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Maximum Switching Capacity:
2500 VA/280 W
Status Led:
with
Average Coil Consumption In Va:
3-3 60 Hz
[Uc] Control Circuit Voltage:
230 V AC 50/60 Hz
Pollution Degree:
2
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Test Levels:
level A group mounting
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Standards:
UL 508 || IEC 61810-1 || CSA C22.2 No 14
Series Name:
Universal
Ip Degree Of Protection:
IP40
Range Of Product:
Harmony Electromechanical Relays
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Rated Operational Voltage Limits:
184...253 V AC
Average Resistance:
6800 Ohm 20 °C +/- 15 %
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Safety Reliability Data:
B10d = 100000
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
Reset Time:
20 ms at nominal voltage
Protection Category:
RT I
Contacts Material:
AgNi
Control Type:
lockable test button
Ambient Air Temperature For Storage:
-40-85 °C
Shape Of Pin:
cylindrical
