Schneider Electric

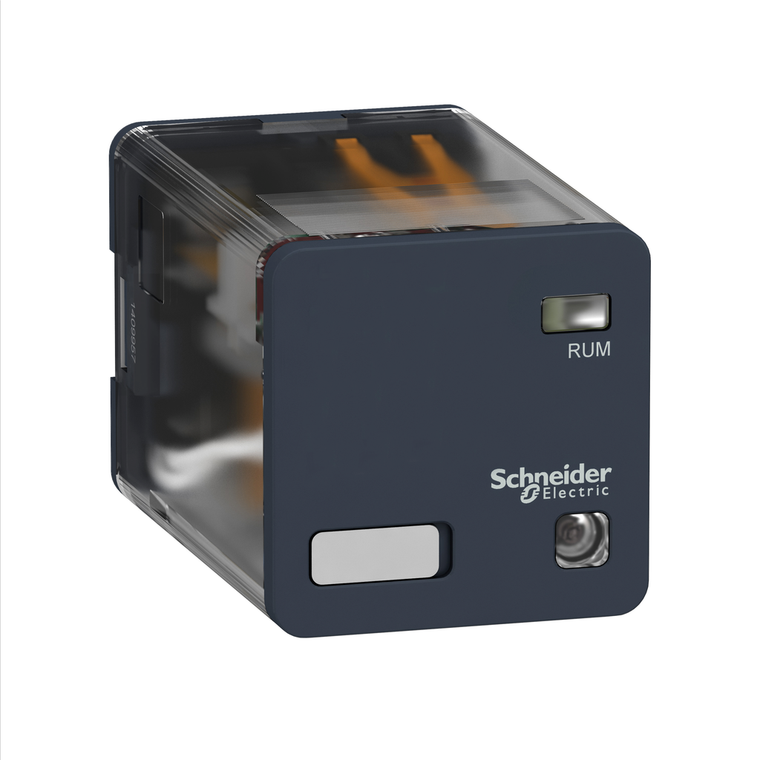

Schneider Electric RUMF33FD 3Co 10A Relay Faston -Ltb+Led 110Vdc Pack of 10

(No reviews yet) Write a Review
SKU:
RUMF33FD
UPC:
3.60648E+12
Condition:
New
Circularity Profile:
N/A
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Presentation:
complete product
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Average Resistance:
7300 Ohm 20 °C +/- 15 %
Net Weight:
0.086 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Time:
20 ms at nominal voltage
Load Current:
10 A 250 V AC || 10 A 28 V DC
Safety Reliability Data:
B10d = 100000
Contacts Material:
AgNi
Status Led:
with
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Series Name:
Universal
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Operating Position:
any position
Test Levels:
level A group mounting
Control Type:
without lockable test button
Maximum Switching Capacity:
2500 VA/280 W
Ambient Air Temperature For Storage:
-40-85 °C
Reset Time:
20 ms at nominal voltage
Utilisation Coefficient:
0.2
Product Or Component Type:
plug-in relay
Product Certifications:
CSA || EAC || UL
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Environmental Disclosure:
ENVPEP1406038EN
Maximum Switching Voltage:
250 V IEC
Range Of Product:
Harmony Electromechanical Relays
Device Short Name:
RUM
Ip Degree Of Protection:
IP40
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
[Uc] Control Circuit Voltage:
110 V DC
Contacts Type And Composition:
3 C/O
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
Electrical Durability:
100000 cycles resistive
Shape Of Pin:
flat
Ambient Air Temperature For Operation:
-40-55 °C
Protection Category:
RT I
Rohs Exemption Information:
Yes
Rated Operational Voltage Limits:
88...121 V DC
Pollution Degree:
3
Average Coil Consumption:
1.4 W
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Reach Free Of Svhc:
Yes
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Mechanical Durability:
5000000 cycles
Catalog:
View
Datasheet:
View
$141.50

Description

This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
