Schneider Electric RUZSC2M Separated Conn Socket For Rumc2 Pack of 10
Schneider Electric
$54.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

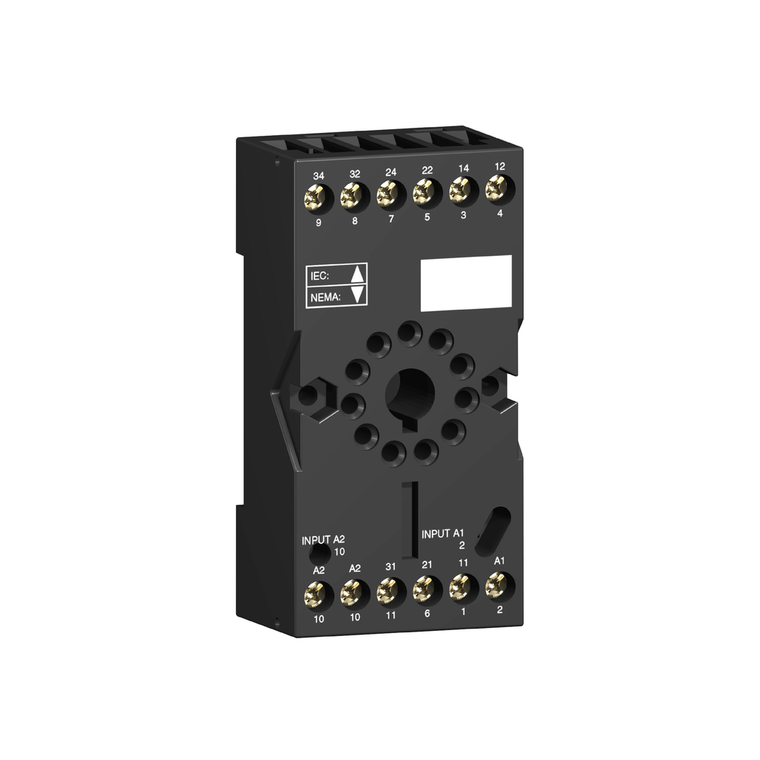

Schneider Electric RUZSC2M Separated Conn Socket For Rumc2 Pack of 10
This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
- Contacts Type And Composition:
- 2 C/O
- Width:
- 36 mm
- Product Or Component Type:
- socket
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Fixing Mode:
- by screw panel) || clip-on 35 mm symmetrical DIN rail)
- Device Short Name:
- RUZ
- Range Of Product:
- Harmony Electromechanical Relays
- Warranty:
- 18 months
- Product Compatibility:
- plug-in relay RUM 2 C/O
- Sale Per Indivisible Quantity:
- 10
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ip Degree Of Protection:
- IP20 conforming to EN/IEC 60529
- China Rohs Regulation:
- X
- Overvoltage Category:
- III
- Net Weight:
- 0.095 kg
- Environmental Disclosure:
- ENVPEP1511021EN
- Contact Terminal Arrangement:
- separate
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-55 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- UL || CSA
- Pollution Degree:
- 3
- Standards:
- IEC 61984
- [Ith] Conventional Free Air Thermal Current:
- 0
- [Ue] Rated Operational Voltage:
- < 250 V
- Tightening Torque:
- < 1 N.m M3.5
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Shape Of Pin:
- cylindrical
- Toxic Heavy Metal Free:
- Yes
- Marking:
- CE
- Reach Free Of Svhc:
- Yes
- Connections - Terminals:
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
- Catalog:
- View
- Datasheet:
- View
