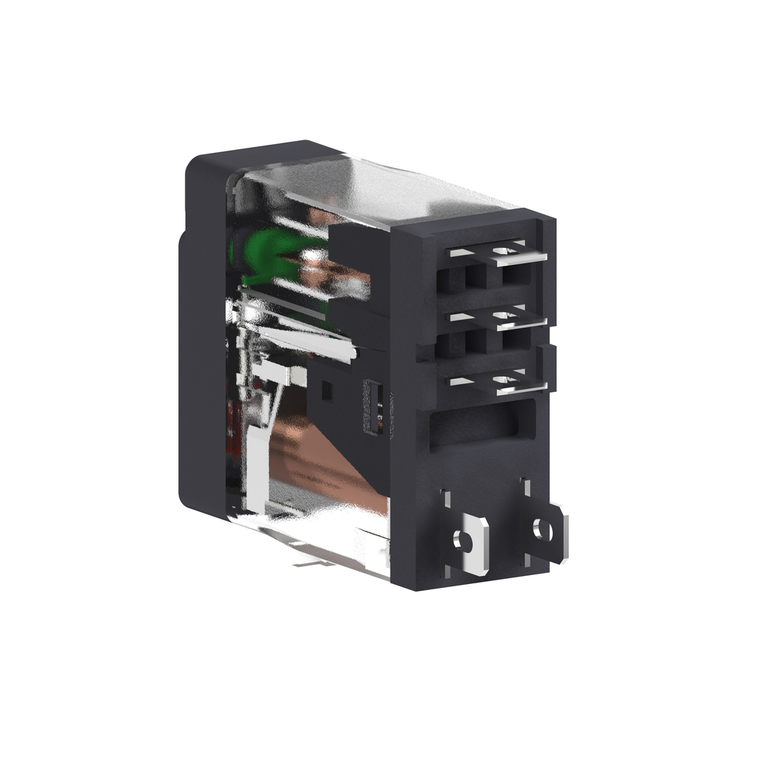

Schneider Electric RXG12B7 1Co 10A Relay +Ltb+Led 24Vac Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RXG12B7 1Co 10A Relay +Ltb+Led 24Vac Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RXG12B7

UPC:

3606480688669

MPN:

Condition:

New

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V CSA || 300 V UL

Environmental Disclosure:

ENVPEP1406006EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Resistance:

260 Ohm +/- 10 %

Contacts Type And Composition:

1 C/O

Vibration Resistance:

3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation

Device Short Name:

RXG

Insulation Resistance:

1000 MOhm at 500 V DC

Test Levels:

level A group mounting

Control Circuit Voltage Limits:

0.8...1.1 Uc AC

Protection Category:

RT I

Range Of Product:

Harmony Electromechanical Relays

Safety Reliability Data:

B10d = 100000

Colour Of Cover:

standard

[Ithe] Conventional Enclosed Thermal Current:

10 A -40-55 °C

Ip Degree Of Protection:

IP40

Mechanical Durability:

10000000 cycles

Minimum Switching Capacity:

500 mW at 100 mA, 5 V DC

Maximum Switching Voltage:

250 V AC || 30 V DC

Series Name:

interface relay

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Product Or Component Type:

plug-in relay

Ambient Air Temperature For Storage:

-40-85 °C

[Ie] Rated Operational Current:

10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL

Local Signalling:

flag

Device Presentation:

complete product

Relative Humidity:

10-85 %

Overvoltage Category:

III

Standards:

IEC 61810-1 || CSA C22.2 No 14 || UL 508

Product Certifications:

EAC || CSA || UL || CE || DNV-GL

Contacts Material:

silver alloy (AgSnO2In2O3)

Ambient Air Temperature For Operation:

-40-70 °C

Load Current:

10 A 250 V AC

Pollution Degree:

2

Maximum Switching Capacity:

2500 VA

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Position:

any position

Net Weight:

0.02 kg

Torque Value:

0.8 N.m

Reach Free Of Svhc:

Yes

Control Type:

lockable test button

Electrical Durability:

100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C

China Rohs Regulation:

X

Drop-Out Voltage Threshold:

>= 0.3 Uc AC

Status Led:

with

Dielectric Strength:

1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation

Shock Resistance:

20 gn in operation || 100 gn not in operation

Toxic Heavy Metal Free:

Yes

Operating Rate:

<= 1800 cycles/hour under load || <= 18000 cycles/hour no-load

Average Consumption:

0.82 VA 60 Hz

Sustainable Offer Status:

Green Premium product

Utilisation Coefficient:

0.2

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Catalog:

View

Datasheet:

View
