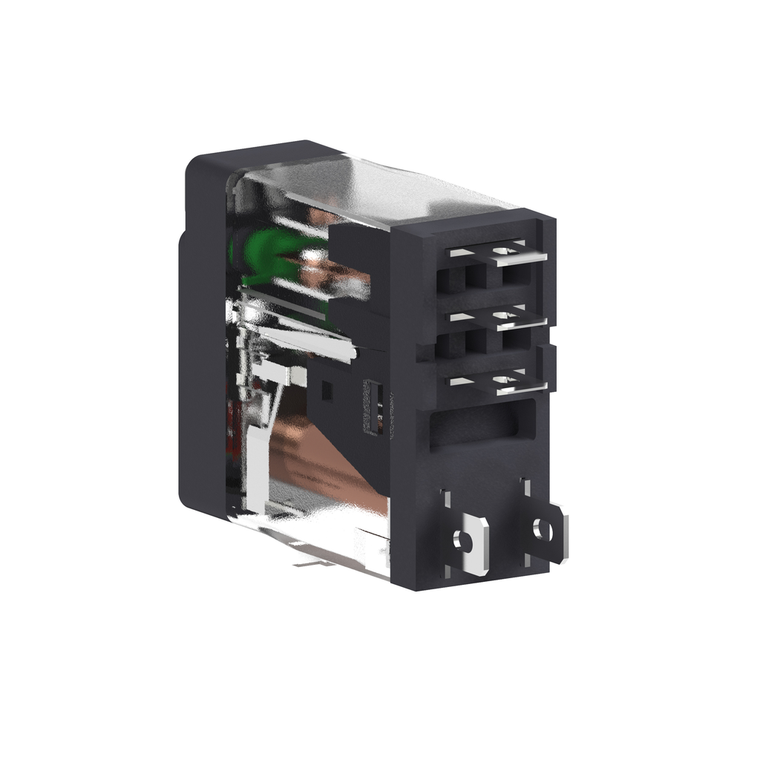

Schneider Electric RXG12E7 1Co 10A Relay +Ltb+Led 48Vac Pack of 10
Schneider Electric
$129.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 48V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Load Current:
- 10 A 250 V AC
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Control Type:
- lockable test button
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- RXG
- Device Presentation:
- complete product
- Average Consumption:
- 0.82 VA 60 Hz
- China Rohs Regulation:
- X
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Safety Reliability Data:
- B10d = 100000
- Product Or Component Type:
- plug-in relay
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Reach Free Of Svhc:
- Yes
- Local Signalling:
- flag
- [Uc] Control Circuit Voltage:
- 48 V AC 50/60 Hz
- Utilisation Coefficient:
- 0.2
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Relative Humidity:
- 10-85 %
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Ip Degree Of Protection:
- IP40
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Maximum Switching Capacity:
- 2500 VA
- Pollution Degree:
- 2
- Mercury Free:
- Yes
- Resistance:
- 1100 Ohm +/- 10 %
- Overvoltage Category:
- III
- Mounting Position:
- any position
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Product Certifications:
- UL || CE || CSA || EAC || DNV-GL
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Contacts Type And Composition:
- 1 C/O
- Circularity Profile:
- N/A
- Torque Value:
- 0.8 N.m
- Status Led:
- with
- Environmental Disclosure:
- ENVPEP1406006EN
- Colour Of Cover:
- standard
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Series Name:
- interface relay
- Ambient Air Temperature For Storage:
- -40-85 °C
- Range Of Product:
- Harmony Electromechanical Relays
- Standards:
- IEC 61810-1 || UL 508 || CSA C22.2 No 14
- Protection Category:
- RT I
- Net Weight:
- 0.02 kg
