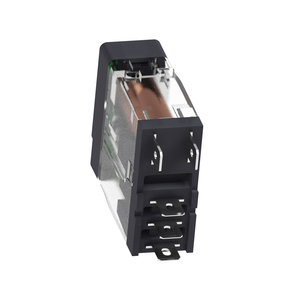

Schneider Electric RXG13P7 1Co 10A Relay-Ltb+Led 230Vac Pack of 10
Schneider Electric
$100.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXG13P7 1Co 10A Relay-Ltb+Led 230Vac Pack of 10
This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Torque Value:
- 0.8 N.m
- Ip Degree Of Protection:
- IP40
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Rohs Exemption Information:
- Yes
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1406006EN
- Colour Of Cover:
- standard
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Product Or Component Type:
- plug-in relay
- Mounting Position:
- any position
- Local Signalling:
- flag
- Series Name:
- interface relay
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Maximum Switching Capacity:
- 2500 VA
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Mechanical Durability:
- 10000000 cycles
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Mercury Free:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Contacts Type And Composition:
- 1 C/O
- Status Led:
- with
- Load Current:
- 10 A 250 V AC
- Product Certifications:
- EAC || UL || CE || CSA || DNV-GL
- Relative Humidity:
- 10-85 %
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ambient Air Temperature For Storage:
- -40-85 °C
- Average Consumption:
- 0.82 VA 60 Hz
- Device Short Name:
- RXG
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Net Weight:
- 0.02 kg
- Resistance:
- 23500 Ohm +/- 15 %
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Utilisation Coefficient:
- 0.2
- Warranty:
- 18 months
- Pollution Degree:
- 2
- Circularity Profile:
- N/A
- Test Levels:
- level A group mounting
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Device Presentation:
- complete product
- Overvoltage Category:
- III
- Range Of Product:
- Harmony Electromechanical Relays
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Protection Category:
- RT I
- Safety Reliability Data:
- B10d = 100000
