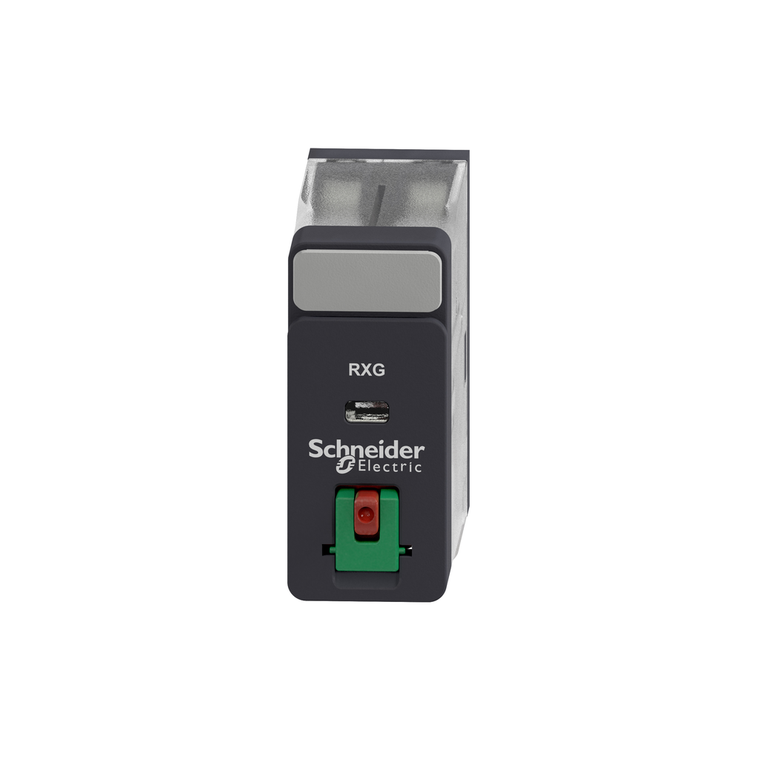

Schneider Electric RXG21E7 2Co 5A Relay +Ltb-Led 48Vac Pack of 10
This Harmony RXG plug-in relay socket has a coil control voltage of 48V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
- Reach Free Of Svhc:
- Yes
- Control Type:
- lockable test button
- Colour Of Cover:
- standard
- Local Signalling:
- flag
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- [Uc] Control Circuit Voltage:
- 48 V AC 50/60 Hz
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Net Weight:
- 0.02 kg
- Average Consumption:
- 0.82 VA 60 Hz
- Toxic Heavy Metal Free:
- Yes
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Series Name:
- interface relay
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Utilisation Coefficient:
- 0.2
- China Rohs Regulation:
- X
- Device Short Name:
- RXG
- Protection Category:
- RT I
- Mechanical Durability:
- 10000000 cycles
- Overvoltage Category:
- III
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- Rohs Exemption Information:
- Yes
- Torque Value:
- 0.8 N.m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ambient Air Temperature For Storage:
- -40-85 °C
- Contacts Type And Composition:
- 2 C/O
- Safety Reliability Data:
- B10d = 100000
- Environmental Disclosure:
- ENVPEP1406006EN
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Resistance:
- 1100 Ohm +/- 10 %
- Ip Degree Of Protection:
- IP40
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony Electromechanical Relays
- Product Or Component Type:
- plug-in relay
- Test Levels:
- level A group mounting
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Product Certifications:
- CSA || UL || EAC || CE || DNV-GL
- Pollution Degree:
- 2
- Maximum Switching Capacity:
- 1250 VA
- Mounting Position:
- any position
- Load Current:
- 5 A 250 V AC
- Circularity Profile:
- N/A
- Relative Humidity:
- 10-85 %
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Mercury Free:
- Yes
- Status Led:
- without
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
