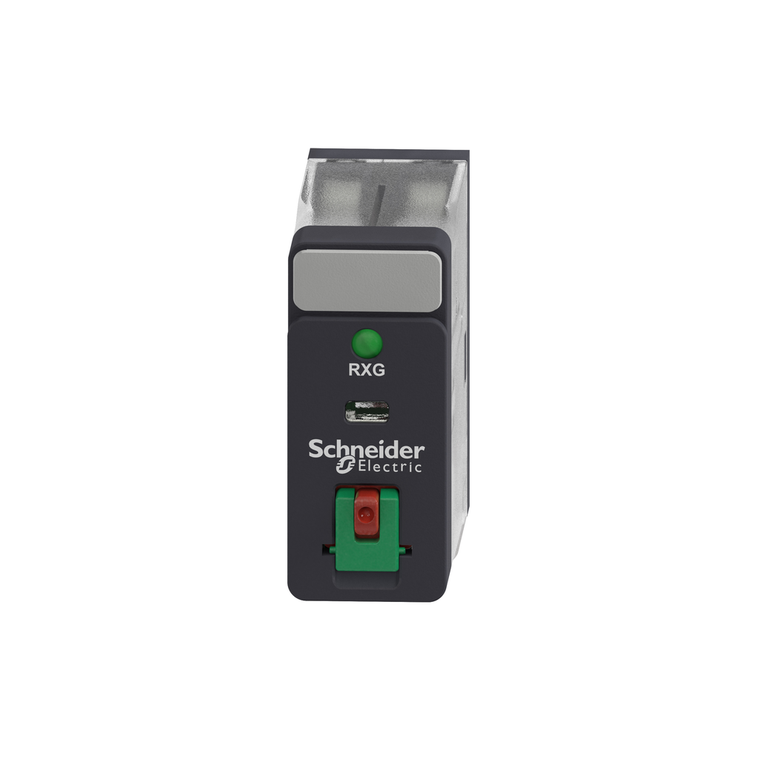

Schneider Electric RXG22B7 2Co 5A Relay +Ltb+Led 24Vac Pack of 10
Schneider Electric
$80.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Device Short Name:
- RXG
- Product Certifications:
- UL || EAC || CSA || CE || DNV-GL
- Status Led:
- with
- Protection Category:
- RT I
- Product Or Component Type:
- plug-in relay
- Utilisation Coefficient:
- 0.2
- Toxic Heavy Metal Free:
- Yes
- Safety Reliability Data:
- B10d = 100000
- Mechanical Durability:
- 10000000 cycles
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Net Weight:
- 0.02 kg
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Load Current:
- 5 A 250 V AC
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Ambient Air Temperature For Operation:
- -40-70 °C
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Rohs Exemption Information:
- Yes
- Colour Of Cover:
- standard
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Contacts Type And Composition:
- 2 C/O
- Reach Free Of Svhc:
- Yes
- Control Type:
- lockable test button
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Pollution Degree:
- 2
- Ip Degree Of Protection:
- IP40
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Local Signalling:
- flag
- Range Of Product:
- Harmony Electromechanical Relays
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Mounting Position:
- any position
- Ambient Air Temperature For Storage:
- -40-85 °C
- Relative Humidity:
- 10-85 %
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Maximum Switching Capacity:
- 1250 VA
- Resistance:
- 260 Ohm +/- 10 %
- Torque Value:
- 0.8 N.m
- Series Name:
- interface relay
- Test Levels:
- level A group mounting
- Overvoltage Category:
- III
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Average Consumption:
- 0.82 VA 60 Hz
- Environmental Disclosure:
- ENVPEP1406006EN
- Device Presentation:
- complete product
