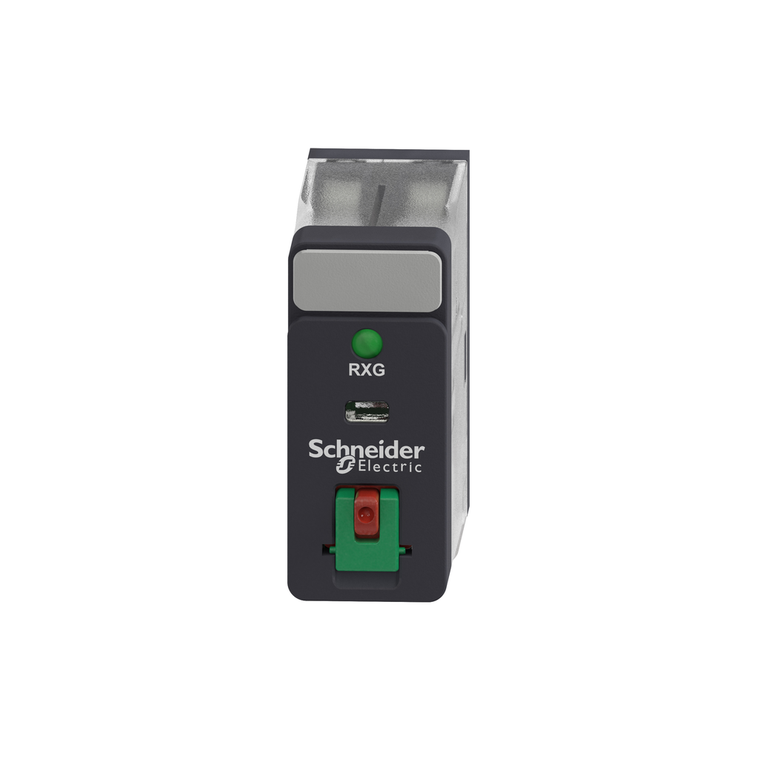

Schneider Electric RXG22P7 2Co 5A Relay +Ltb+Led 230Vac Pack of 10
Schneider Electric
$126.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXG22P7 2Co 5A Relay +Ltb+Led 230Vac Pack of 10
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Toxic Heavy Metal Free:
- Yes
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Local Signalling:
- flag
- Mechanical Durability:
- 10000000 cycles
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Contacts Type And Composition:
- 2 C/O
- Overvoltage Category:
- III
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Circularity Profile:
- N/A
- Device Short Name:
- RXG
- Ambient Air Temperature For Storage:
- -40-85 °C
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Relative Humidity:
- 10-85 %
- Mounting Position:
- any position
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.02 kg
- Average Consumption:
- 0.82 VA 60 Hz
- Mercury Free:
- Yes
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Torque Value:
- 0.8 N.m
- Status Led:
- with
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance:
- 23500 Ohm +/- 15 %
- Range Of Product:
- Harmony Electromechanical Relays
- Pollution Degree:
- 2
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Load Current:
- 5 A 250 V AC
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Environmental Disclosure:
- ENVPEP1406006EN
- Ip Degree Of Protection:
- IP40
- Control Type:
- lockable test button
- Series Name:
- interface relay
- Maximum Switching Capacity:
- 1250 VA
- Rohs Exemption Information:
- Yes
- Test Levels:
- level A group mounting
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Colour Of Cover:
- standard
- Utilisation Coefficient:
- 0.2
- Safety Reliability Data:
- B10d = 100000
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Product Or Component Type:
- plug-in relay
- Protection Category:
- RT I
- Device Presentation:
- complete product
- Product Certifications:
- UL || EAC || CE || CSA || DNV-GL
