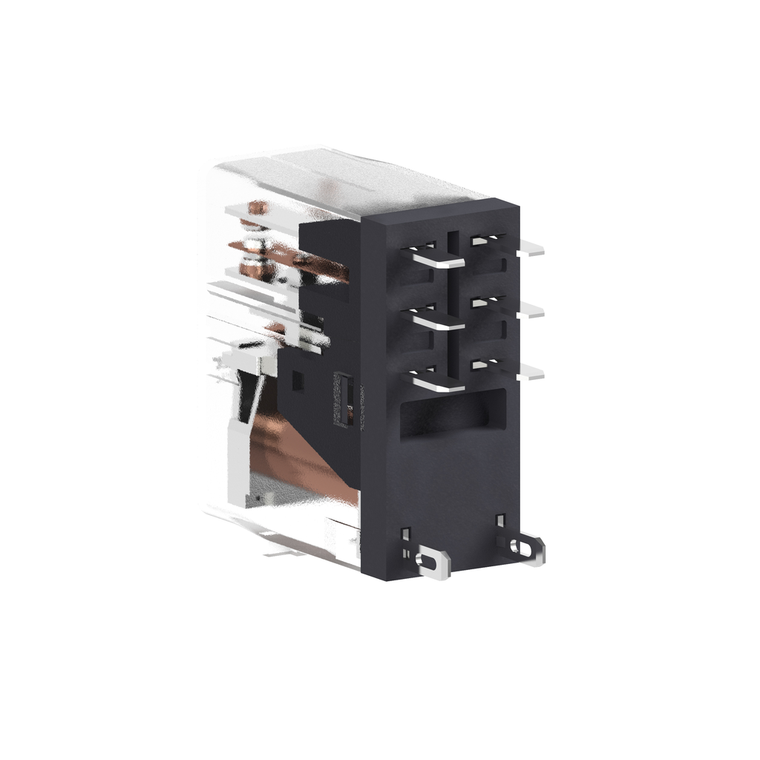

Schneider Electric RXG25BD 2Co 5A Relay Clear 24Vdc
Schneider Electric
$5.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXG25BD 2Co 5A Relay Clear 24Vdc
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Product Or Component Type:
- plug-in relay
- China Rohs Regulation:
- X
- Device Short Name:
- RXG
- Contacts Type And Composition:
- 2 C/O
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Protection Category:
- RT I
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- complete product
- Overvoltage Category:
- III
- Safety Reliability Data:
- B10d = 100000
- Range Of Product:
- Harmony Electromechanical Relays
- Sustainable Offer Status:
- Green Premium product
- Torque Value:
- 0.8 N.m
- Load Current:
- 5 A 250 V AC
- Mounting Position:
- any position
- Ip Degree Of Protection:
- IP40
- Product Certifications:
- CSA || CE || EAC || UL || DNV-GL
- Environmental Disclosure:
- ENVPEP1406006EN
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Resistance:
- 1100 Ohm +/- 10 %
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Series Name:
- interface relay
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Utilisation Coefficient:
- 0.2
- [Uc] Control Circuit Voltage:
- 24 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.018 kg
- Rohs Exemption Information:
- Yes
- Test Levels:
- level A group mounting
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Colour Of Cover:
- transparent
- Pollution Degree:
- 2
- Mechanical Durability:
- 10000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Relative Humidity:
- 10-85 %
- Mercury Free:
- Yes
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Circularity Profile:
- N/A
- Maximum Switching Capacity:
- 1250 VA
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Ambient Air Temperature For Storage:
- -40-85 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
- Contacts Material:
- silver alloy (AgSnO2In2O3)
