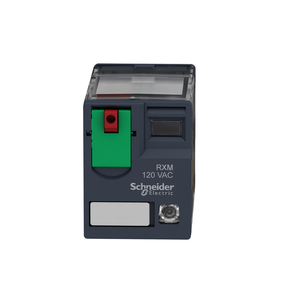

Schneider Electric RXM2AB1F7 Miniature Relay 2C/O 120Vac Pack of 10
Schneider Electric
$64.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXM2AB1F7 Miniature Relay 2C/O 120Vac Pack of 10
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXM miniature plug-in relay has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
- Operating Position:
- any position
- Status Led:
- without
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Contacts Material:
- AgNi
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Control Type:
- lockable test button
- Reset Time:
- 20 ms
- Mercury Free:
- Yes
- Test Levels:
- level A group mounting
- [Ie] Rated Operational Current:
- 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
- Pollution Degree:
- 3
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Environmental Disclosure:
- ENVPEP2106019EN
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- Mechanical Durability:
- 10000000 cycles
- Net Weight:
- 0.037 kg
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Reach Free Of Svhc:
- Yes
- Continuous Output Current:
- 0.416666666666667
- Toxic Heavy Metal Free:
- Yes
- Series Name:
- Miniature
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- complete product
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Or Component Type:
- plug-in relay
- Average Resistance:
- 4430 Ohm 20 °C +/- 15 %
- Contacts Type And Composition:
- 2 C/O
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Rohs Exemption Information:
- Yes
- Average Consumption:
- 1.2 VA 60 Hz
- Utilisation Coefficient:
- 0.2
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- RXM
- Circularity Profile:
- ENVEOLI2106019EN
- Maximum Switching Voltage:
- 250 V IEC
- Sustainable Offer Status:
- Green Premium product
- Shape Of Pin:
- flat
- Warranty:
- 18 months
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Safety Reliability Data:
- B10d = 100000
- China Rohs Regulation:
- X
- Operating Time:
- 20 ms
- Rated Operational Voltage Limits:
- 96...132 V AC
- Protection Category:
- RT I
- Maximum Switching Capacity:
- 3000 VA/336 W
- Ambient Air Temperature For Storage:
- -40-85 °C
- Range Of Product:
- Harmony Electromechanical Relays
- Electrical Durability:
- 100000 cycles resistive
