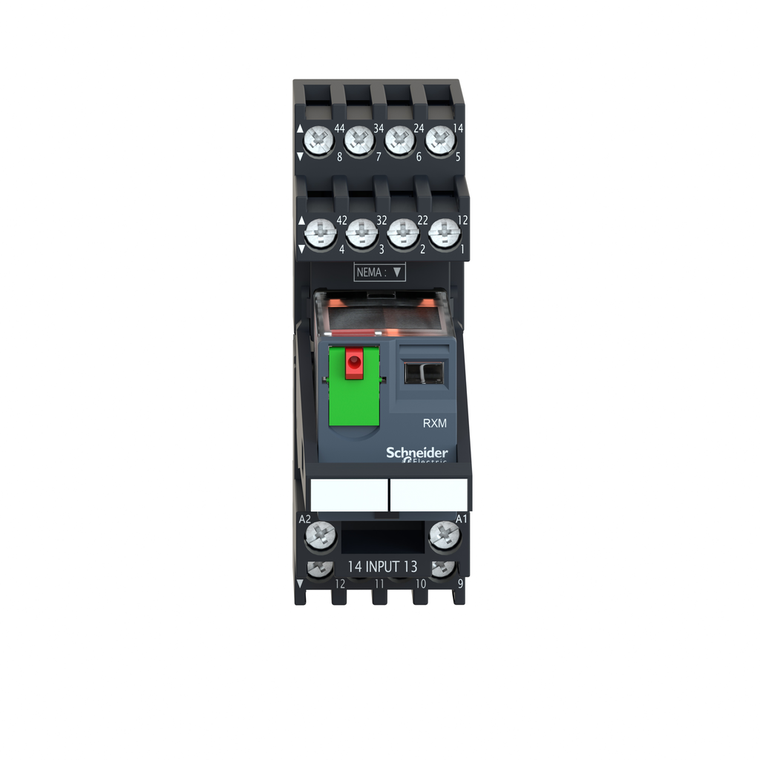

Schneider Electric RXM2AB2B7PVM Harmony Rxm Relay Module,2C/O 10A 24Vac Pack of 30

Schneider Electric RXM2AB2B7PVM Harmony Rxm Relay Module,2C/O 10A 24Vac Pack of 30

Schneider Electric
SKU:
RXM2AB2B7PVM
|
UPC:
3606489563165
$714.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 12A, 24Vac, 2 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Additional Information
Utilisation Coefficient:
0.2
Rated Operational Voltage Limits:
19.2...26.4 V AC
Sustainable Offer Status:
Green Premium product
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Contacts Material:
AgNi
Net Weight:
0.096 kg
Test Levels:
level A group mounting
Product Or Component Type:
pre-assembled plug-in relay with socket
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Load Current:
10 A 250 V AC || 10 A 28 V DC
Minimum Switching Current:
10 mA
Electrical Durability:
100000 cycles resistive
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Cad Overall Height:
79 mm
Environmental Disclosure:
ENVPEP1511008EN
Maximum Switching Capacity:
2500 VA AC || 280 W DC
Average Coil Consumption:
1.2 W, AC
Contacts Type And Composition:
2 C/O
Warranty:
18 Months
Shock Resistance:
10 gnin operation || 30 gnnot operating
Reach Free Of Svhc:
Yes
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Connections - Terminals:
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Width:
26.9 mm
Series Name:
Miniature
Standards:
UL 508 || IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
Circularity Profile:
N/A
Ambient Air Temperature For Storage:
-40-85 °C
Drop-Out Voltage Threshold:
>= 0.3 Uc AC
Operating Position:
any position
Maximum Switching Voltage:
250 V
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Safety Reliability Data:
B10d = 100000
[Ui] Rated Insulation Voltage:
250 V IEC
Control Type:
lockable test button
Device Short Name:
RXM
Minimum Switching Voltage:
17 V
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Average Resistance:
180 Ohm 20 °C +/- 10 %
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sale Per Indivisible Quantity:
30
Range Of Product:
Harmony Electromechanical Relays
Continuous Output Current:
0.416666666666667
Operating Time:
20 ms
Protection Category:
RT I
Mercury Free:
Yes
Reset Time:
20 ms
Status Led:
with
Cad Overall Depth:
78.45 mm
[Ie] Rated Operational Current:
6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 10 A 28 V DC) NO UL || 10 A 250 V AC) NO UL
Device Presentation:
complete product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pollution Degree:
2
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
Torque Value:
1 N.m
Mechanical Durability:
10000000 cycles
Ambient Air Temperature For Operation:
-40-55 °C
