Schneider Electric RXM2AB2JD Miniature Relay Led 2C/O 12Vdc Pack of 10
Schneider Electric
$75.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

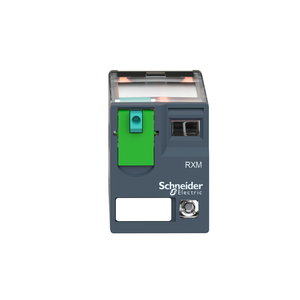

Schneider Electric RXM2AB2JD Miniature Relay Led 2C/O 12Vdc Pack of 10
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 12 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- Reset Time:
- 20 ms
- Toxic Heavy Metal Free:
- Yes
- Utilisation Coefficient:
- 0.2
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Pollution Degree:
- 3
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.037 kg
- Mechanical Durability:
- 10000000 cycles
- Control Type:
- lockable test button
- Cad Overall Height:
- 79 mm
- Contacts Type And Composition:
- 2 C/O
- Maximum Switching Voltage:
- 250 V IEC
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Safety Reliability Data:
- B10d = 100000
- Range Of Product:
- Harmony Electromechanical Relays
- Average Resistance:
- 160 Ohm 20 °C +/- 10 %
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Product Or Component Type:
- plug-in relay
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Protection Category:
- RT I
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Average Coil Consumption:
- 0.9 W
- Environmental Disclosure:
- ENVPEP2106019EN
- Device Presentation:
- complete product
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Rated Operational Voltage Limits:
- 9.6...13.2 V DC
- Warranty:
- 18 months
- Shape Of Pin:
- flat
- Circularity Profile:
- ENVEOLI2106019EN
- [Uc] Control Circuit Voltage:
- 12 V DC
- Series Name:
- Miniature
- Ambient Air Temperature For Storage:
- -40-85 °C
- Drop-Out Voltage Threshold:
- >= 0.1 Uc
- Cad Overall Depth:
- 78.45 mm
- Operating Position:
- any position
- Ambient Air Temperature For Operation:
- -40-55 °C
- Electrical Durability:
- 100000 cycles resistive
- Continuous Output Current:
- 0.416666666666667
- Contacts Material:
- AgNi
- Status Led:
- with
- Operating Time:
- 20 ms
- [Ie] Rated Operational Current:
- 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Maximum Switching Capacity:
- 3000 VA/336 W
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Device Short Name:
- RXM
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
