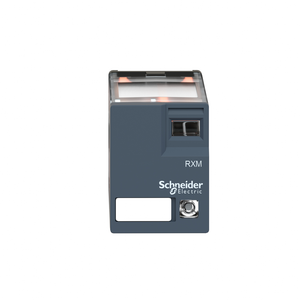

Schneider Electric RXM2AB3BD Miniature Relay 2 Co Without Button With Pack of 10

Schneider Electric RXM2AB3BD Miniature Relay 2 Co Without Button With Pack of 10

Schneider Electric
SKU:
RXM2AB3BD
|
UPC:
3389119217125
Availability:
Contact us to confirm availability and lead times.
$69.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Additional Information
Environmental Disclosure:
ENVPEP2106019EN
Drop-Out Voltage Threshold:
>= 0.1 Uc
Test Levels:
level A group mounting
Range Of Product:
Harmony Electromechanical Relays
Product Or Component Type:
plug-in relay
Reset Time:
20 ms
Contacts Material:
AgNi
Warranty:
18 months
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Ip Degree Of Protection:
IP40 conforming to IEC 60529
[Uc] Control Circuit Voltage:
24 V DC
Contacts Type And Composition:
2 C/O
Net Weight:
0.037 kg
Circularity Profile:
ENVEOLI2106019EN
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Load Current:
12 A 250 V AC || 12 A 28 V DC
Reach Free Of Svhc:
Yes
Control Type:
without lockable test button
Maximum Switching Voltage:
250 V IEC
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Shock Resistance:
10 gnin operation || 30 gnnot operating
Protection Category:
RT I
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current:
12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
Continuous Output Current:
0.416666666666667
Series Name:
Miniature
China Rohs Regulation:
X
Average Resistance:
650 Ohm 20 °C +/- 10 %
Mechanical Durability:
10000000 cycles
Sustainable Offer Status:
Green Premium product
Average Coil Consumption:
0.9 W
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Cad Overall Height:
82.8 mm
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Device Presentation:
complete product
Operating Position:
any position
Ambient Air Temperature For Storage:
-40-85 °C
Safety Reliability Data:
B10d = 100000
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Electrical Durability:
100000 cycles resistive
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Cad Overall Depth:
80.35 mm
Pollution Degree:
3
Status Led:
with
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
Rated Operational Voltage Limits:
19.2...26.4 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-40-55 °C
Shape Of Pin:
flat
Device Short Name:
RXM
Utilisation Coefficient:
0.2
Maximum Switching Capacity:
3000 VA/336 W
Standards:
IEC 61810-1 || UL 508 || CSA C22.2 No 14
Operating Time:
20 ms
Rohs Exemption Information:
Yes
