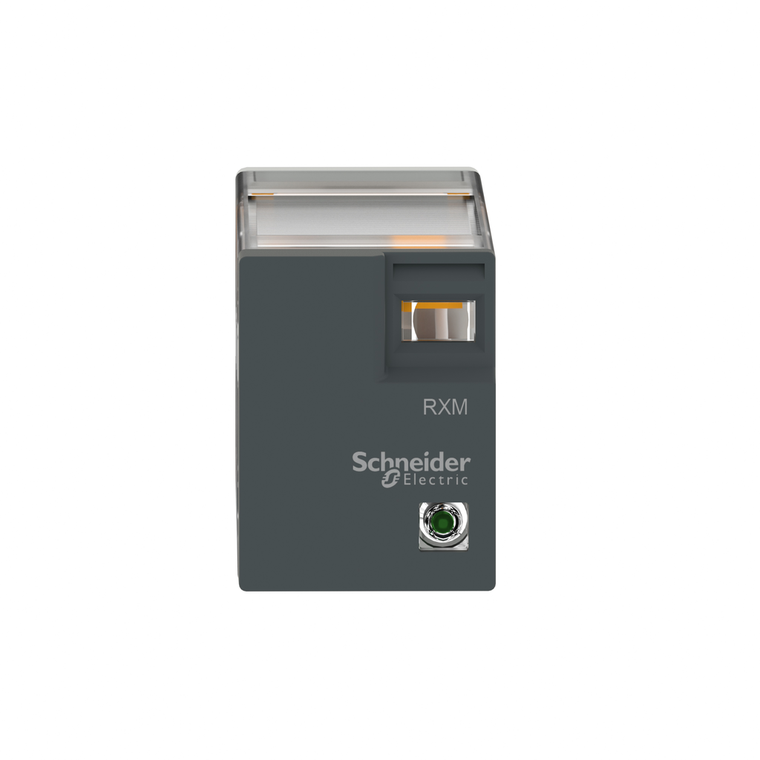

Schneider Electric RXM2LB1JD Miniature Relay 5A 2Co 12Vdc W/O Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RXM2LB1JD

UPC:

3389119215145

MPN:

Condition:

New

Minimum Switching Capacity:

170 mW

Sale Per Indivisible Quantity:

10

Electrical Durability:

100000 cycles for resistive load || 50000 cycles, 1 A at 28 V, DC-13 NO

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs IEC 61810-7

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Average Coil Consumption:

0.9 W, DC

Coil Interference Suppression:

without

Operating Rate:

<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load

China Rohs Regulation:

X

Control Type:

without push-button

Operating Time:

20 ms between coil de-energisation and making of the Off-delay contact || 20 ms between coil energisation and making of the On-delay contact

Device Short Name:

RXM

Vibration Resistance:

3 gn +/- 1 mm 10-50 Hz)operating IEC 60068-2-6 || 6 gn +/- 1 mm 10-50 Hz)not operating IEC 60068-2-6

Cad Overall Depth:

46 mm

Maximum Switching Voltage:

250 V AC || 28 V DC

Environmental Disclosure:

ENVPEP2108011EN

[Ie] Rated Operational Current:

5 A AC-1/DC-1) NO IEC || 2.5 A AC-1/DC-1) NC IEC || 1 A 28 V DC-13) NO

Net Weight:

0.032 kg

Rated Operational Voltage Limits:

9.6...13.2 V DC

Utilisation Coefficient:

0.2

Mercury Free:

Yes

Protection Category:

RT I

Rohs Exemption Information:

Yes

Pollution Degree:

3

Test Levels:

level A group mounting

Product Or Component Type:

plug-in relay

Drop-Out Voltage Threshold:

>= 0.1 Uc DC

Minimum Switching Voltage:

17 V

Status Led:

without

Maximum Switching Capacity:

1250 VA AC || 140 W DC

[Uc] Control Circuit Voltage:

12 V DC

Safety Reliability Data:

B10d = 100000

Ambient Air Temperature For Operation:

-40-55 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ui] Rated Insulation Voltage:

250 V IEC

Cad Overall Width:

21 mm

Load Current:

5 A 250 V AC || 5 A 28 V DC

Shock Resistance:

30 gnnot operating IEC 60068-2-27 || 10 gnin operation IEC 60068-2-27

Reach Free Of Svhc:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Toxic Heavy Metal Free:

Yes

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Contacts Type And Composition:

2 C/O

Series Name:

Miniature

Dielectric Strength:

2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation || 1000 V AC between contacts with micro disconnection

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ithe] Conventional Enclosed Thermal Current:

5 A -40-55 °C

Average Resistance:

160 Ohm at 23 °C +/- 10 %

Cad Overall Height:

27 mm

Contacts Material:

silver alloy (Ag/Ni)

Sustainable Offer Status:

Green Premium product

Range Of Product:

Harmony Electromechanical Relays

Circularity Profile:

ENVEOLI2108011EN

Operating Position:

any position

Ambient Air Temperature For Storage:

-40-85 °C

Minimum Switching Current:

10 mA

Mechanical Durability:

10000000 cycles

Standards:

CE || IEC 61810-1 (iss. 2)
