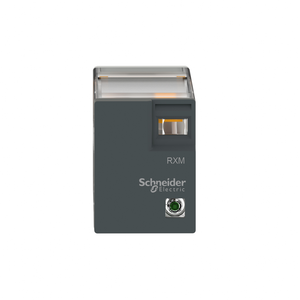

Schneider Electric RXM2LB1P7 Miniature Relay 5A 2Co 230Vac W/O Led

Schneider Electric RXM2LB1P7 Miniature Relay 5A 2Co 230Vac W/O Led

Schneider Electric
SKU:
RXM2LB1P7
|
UPC:
3389119215190
$6.04
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 230 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.
Additional Information
Environmental Disclosure:
ENVPEP2108011EN
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
[Ie] Rated Operational Current:
5 A AC-1/DC-1) NO IEC || 2.5 A AC-1/DC-1) NC IEC || 1 A 28 V DC-13) NO
Coil Interference Suppression:
without
Maximum Switching Voltage:
250 V AC || 28 V DC
Safety Reliability Data:
B10d = 100000
Series Name:
Miniature
Dielectric Strength:
2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation || 1000 V AC between contacts with micro disconnection
Rohs Exemption Information:
Yes
Contacts Type And Composition:
2 C/O
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Protection Category:
RT I
Average Coil Consumption In Va:
1.2-1.2 AC
Device Short Name:
RXM
Pollution Degree:
3
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs IEC 61810-7
[Uc] Control Circuit Voltage:
230 V AC 50/60 Hz
Cad Overall Width:
21 mm
Minimum Switching Capacity:
170 mW
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Vibration Resistance:
3 gn +/- 1 mm 10-50 Hz)operating IEC 60068-2-6 || 6 gn +/- 1 mm 10-50 Hz)not operating IEC 60068-2-6
Cad Overall Depth:
46 mm
Contacts Material:
silver alloy (Ag/Ni)
China Rohs Regulation:
X
Utilisation Coefficient:
0.2
Warranty:
18 months
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Ambient Air Temperature For Storage:
-40-85 °C
Rated Operational Voltage Limits:
184...253 V AC
[Ithe] Conventional Enclosed Thermal Current:
5 A -40-55 °C
Shock Resistance:
30 gnnot operating IEC 60068-2-27 || 10 gnin operation IEC 60068-2-27
Status Led:
without
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Load Current:
5 A 250 V AC || 5 A 28 V DC
Product Or Component Type:
plug-in relay
Sale Per Indivisible Quantity:
10
Minimum Switching Voltage:
17 V
Circularity Profile:
ENVEOLI2108011EN
Electrical Durability:
100000 cycles for resistive load || 50000 cycles, 1 A at 28 V, DC-13 NO
Mechanical Durability:
10000000 cycles
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-40-55 °C
Cad Overall Height:
27 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Minimum Switching Current:
10 mA
Average Resistance:
16500 Ohm at 23 °C +/- 15 %
[Ui] Rated Insulation Voltage:
250 V IEC
Standards:
CE || IEC 61810-1 (iss. 2)
Control Type:
without push-button
Reach Free Of Svhc:
Yes
Operating Position:
any position
Operating Time:
20 ms between coil de-energisation and making of the Off-delay contact || 20 ms between coil energisation and making of the On-delay contact
Toxic Heavy Metal Free:
Yes
Maximum Switching Capacity:
1250 VA AC || 140 W DC
Test Levels:
level A group mounting
Range Of Product:
Harmony Electromechanical Relays
Contact Operation:
standard
