Schneider Electric RXM3AB1FD Miniature Relay 3C/O 110Vdc Pack of 10
Schneider Electric
$104.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

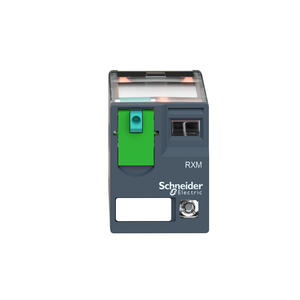

Schneider Electric RXM3AB1FD Miniature Relay 3C/O 110Vdc Pack of 10
This Harmony RXM miniature plug-in relay has a coil control voltage of 110V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
- Net Weight:
- 0.037 kg
- Test Levels:
- level A group mounting
- Protection Category:
- RT I
- Maximum Switching Voltage:
- 250 V IEC
- Cad Overall Depth:
- 80.35 mm
- Status Led:
- without
- [Ie] Rated Operational Current:
- 10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
- Reset Time:
- 20 ms
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Control Type:
- lockable test button
- Pollution Degree:
- 2
- Operating Time:
- 20 ms
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Durability:
- 100000 cycles resistive
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Ambient Air Temperature For Operation:
- -40-55 °C
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Ambient Air Temperature For Storage:
- -40-85 °C
- Warranty:
- 18 months
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Drop-Out Voltage Threshold:
- >= 0.1 Uc
- Maximum Switching Capacity:
- 2500 VA/280 W
- Mechanical Durability:
- 10000000 cycles
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 82.8 mm
- Circularity Profile:
- ENVEOLI2106019EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Continuous Output Current:
- 6.7 A
- Utilisation Coefficient:
- 0.2
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Range Of Product:
- Harmony Electromechanical Relays
- [Uc] Control Circuit Voltage:
- 110 V DC
- Operating Position:
- any position
- Safety Reliability Data:
- B10d = 100000
- Average Resistance:
- 13440 Ohm 20 °C +/- 10 %
- Device Presentation:
- complete product
- Device Short Name:
- RXM
- Contacts Type And Composition:
- 3 C/O
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- China Rohs Regulation:
- X
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Shape Of Pin:
- flat
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Average Coil Consumption:
- 0.9 W
- Environmental Disclosure:
- ENVPEP2106019EN
- Series Name:
- Miniature
- Rated Operational Voltage Limits:
- 88...121 V DC
- Contacts Material:
- AgNi
