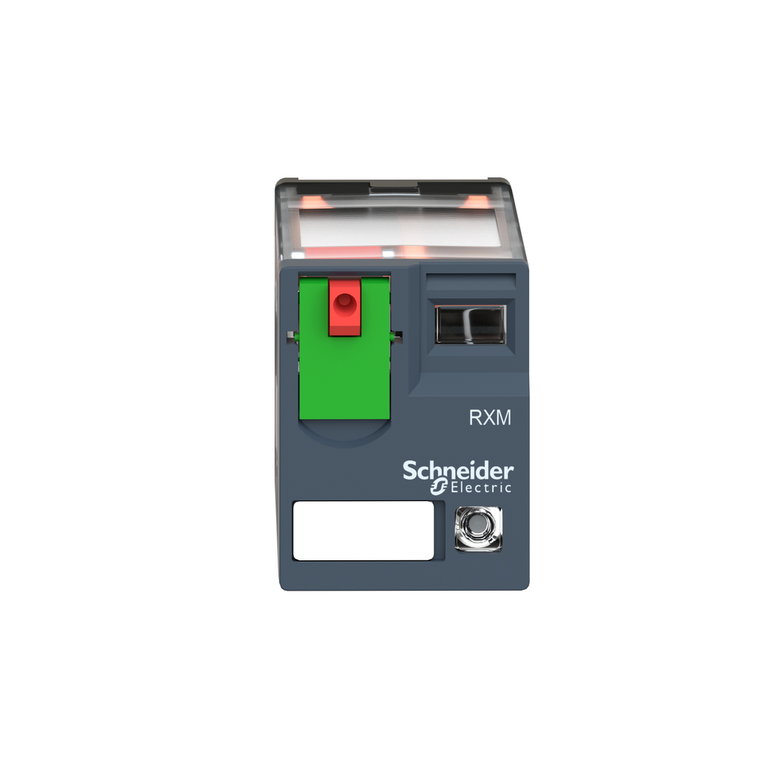

Schneider Electric RXM4AB2F7 Miniature Relay Led 4C/O 120Vac
Schneider Electric
$8.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Zelio Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Zelio plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Zelio plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Zelio plug in relays are UL Listed. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- Test Levels:
- level A group mounting
- Cad Overall Depth:
- 80.35 mm
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Product Or Component Type:
- plug-in relay
- Average Resistance:
- 4430 Ohm 20 °C +/- 15 %
- Device Short Name:
- RXM
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ambient Air Temperature For Operation:
- -40-55 °C
- Environmental Disclosure:
- ENVPEP2106019EN
- Warranty:
- 18 months
- Maximum Switching Voltage:
- 250 V IEC
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Maximum Switching Capacity:
- 1500 VA/168 W
- Control Type:
- lockable test button
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Toxic Heavy Metal Free:
- Yes
- Contacts Type And Composition:
- 4 C/O
- Circularity Profile:
- ENVEOLI2106019EN
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Range Of Product:
- Harmony Electromechanical Relays
- Device Presentation:
- complete product
- Safety Reliability Data:
- B10d = 100000
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Mechanical Durability:
- 10000000 cycles
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Status Led:
- with
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Cad Overall Height:
- 82.8 mm
- Reset Time:
- 20 ms
- Net Weight:
- 0.037 kg
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Reach Free Of Svhc:
- Yes
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Storage:
- -40-85 °C
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pollution Degree:
- 2
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Continuous Output Current:
- 0.208333333333333
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- [Ie] Rated Operational Current:
- 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
- Operating Time:
- 20 ms
- Operating Position:
- any position
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Protection Category:
- RT I
- Shape Of Pin:
- flat
- Contacts Material:
- AgNi
- China Rohs Regulation:
- X
- Load Current:
- 6 A 250 V AC || 6 A 28 V DC
- Rated Operational Voltage Limits:
- 96...132 V AC
- Average Consumption:
- 1.2 VA 60 Hz
- Mercury Free:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Electrical Durability:
- 100000 cycles resistive
- Series Name:
- Miniature
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
