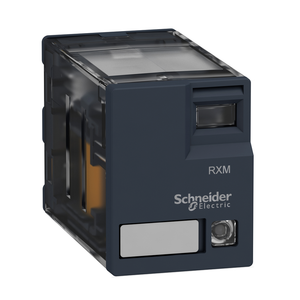

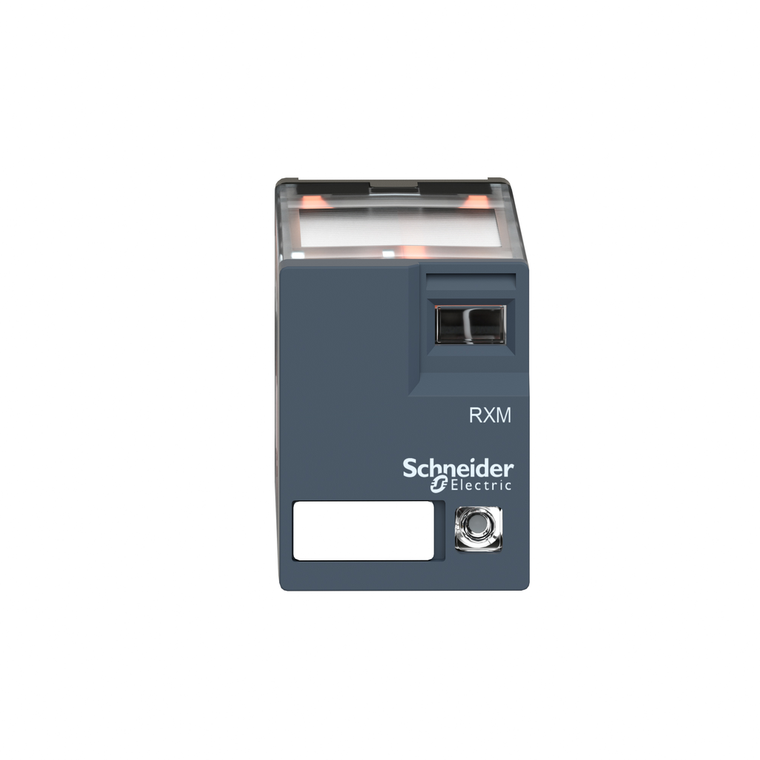

Schneider Electric RXM4AB3B7 Miniature Relay 4 Co Without Button With
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- Contacts Type And Composition:
- 4 C/O
- Average Resistance:
- 180 Ohm 20 °C +/- 15 %
- Maximum Switching Voltage:
- 250 V IEC
- Operating Position:
- any position
- Electrical Durability:
- 100000 cycles resistive
- [Ie] Rated Operational Current:
- 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
- Net Weight:
- 0.037 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Free Of Svhc:
- Yes
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- plug-in relay
- Mechanical Durability:
- 10000000 cycles
- Device Presentation:
- complete product
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Load Current:
- 6 A 250 V AC || 6 A 28 V DC
- Protection Category:
- RT I
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Ambient Air Temperature For Operation:
- -40-55 °C
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Test Levels:
- level A group mounting
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shape Of Pin:
- flat
- Maximum Switching Capacity:
- 1500 VA/168 W
- Sustainable Offer Status:
- Green Premium product
- Safety Reliability Data:
- B10d = 100000
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Rohs Exemption Information:
- Yes
- Status Led:
- with
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Operating Time:
- 20 ms
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI2106019EN
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Average Consumption:
- 1.2 VA 60 Hz
- Series Name:
- Miniature
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Material:
- AgNi
- Control Type:
- without lockable test button
- Continuous Output Current:
- 0.208333333333333
- Environmental Disclosure:
- ENVPEP2106019EN
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony Electromechanical Relays
- Device Short Name:
- RXM
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Storage:
- -40-85 °C
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Pollution Degree:
- 2
- Reset Time:
- 20 ms
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
