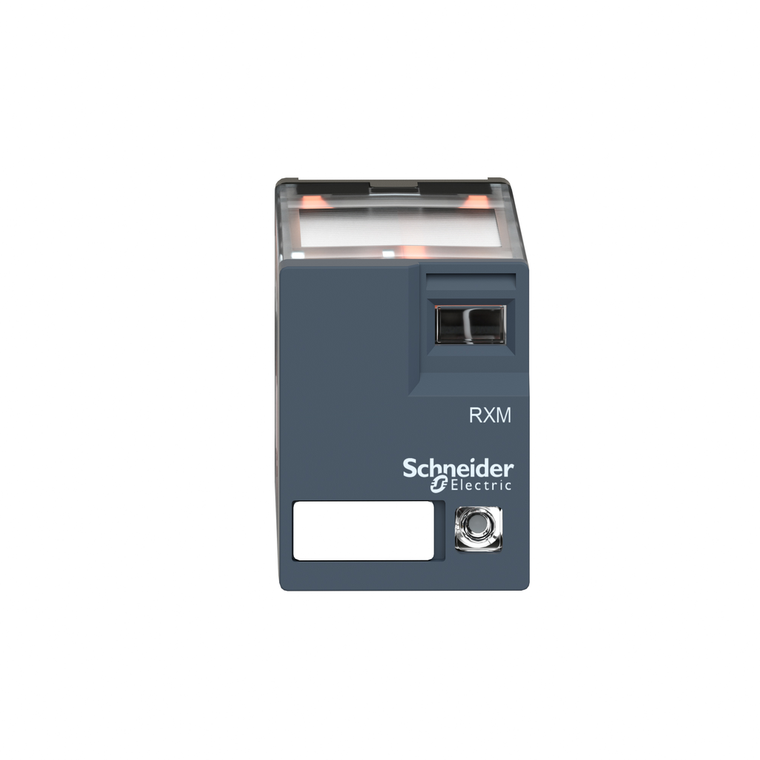

Schneider Electric RXM4AB3BD Miniature Relay 4 Co Without Button With Pack of 10

Schneider Electric RXM4AB3BD Miniature Relay 4 Co Without Button With Pack of 10

Schneider Electric
SKU:
RXM4AB3BD
|
UPC:
3389119217231
Availability:
Contact us to confirm availability and lead times.
$76.90
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Additional Information
Device Short Name:
RXM
Operating Time:
20 ms
Sustainable Offer Status:
Green Premium product
Reset Time:
20 ms
Reach Free Of Svhc:
Yes
Pollution Degree:
2
Series Name:
Miniature
Circularity Profile:
ENVEOLI2106019EN
Rohs Exemption Information:
Yes
Device Presentation:
complete product
Maximum Switching Capacity:
1500 VA/168 W
China Rohs Regulation:
X
Average Coil Consumption:
0.9 W
Ambient Air Temperature For Operation:
-40-55 °C
Environmental Disclosure:
ENVPEP2106019EN
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV 1.2/50 µs
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Utilisation Coefficient:
0.2
Control Type:
without lockable test button
Warranty:
18 months
Status Led:
with
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Drop-Out Voltage Threshold:
>= 0.1 Uc
Test Levels:
level A group mounting
Shape Of Pin:
flat
Contacts Material:
AgNi
Maximum Switching Voltage:
250 V IEC
Load Current:
6 A 250 V AC || 6 A 28 V DC
Ambient Air Temperature For Storage:
-40-85 °C
Average Resistance:
650 Ohm 20 °C +/- 10 %
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Range Of Product:
Harmony Electromechanical Relays
Rated Operational Voltage Limits:
19.2...26.4 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shock Resistance:
10 gnin operation || 30 gnnot operating
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Contacts Type And Composition:
4 C/O
Minimum Switching Capacity:
170 mW 10 mA, 17 V
[Uc] Control Circuit Voltage:
24 V DC
Mechanical Durability:
10000000 cycles
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Electrical Durability:
100000 cycles resistive
Protection Category:
RT I
[Ie] Rated Operational Current:
3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
Continuous Output Current:
0.208333333333333
Net Weight:
0.037 kg
Product Or Component Type:
plug-in relay
Standards:
CSA C22.2 No 14 || IEC 61810-1 || UL 508
Safety Reliability Data:
B10d = 100000
Operating Position:
any position
