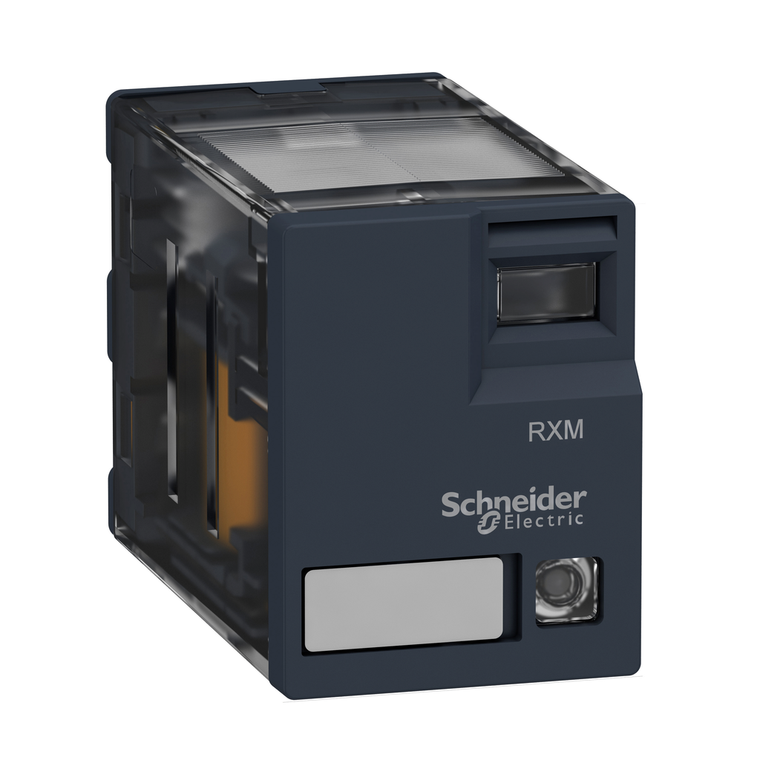

Schneider Electric RXM4AB3F7 Miniature Relay 4 Co Without Button With Pack of 10

Schneider Electric RXM4AB3F7 Miniature Relay 4 Co Without Button With Pack of 10

Schneider Electric
SKU:
RXM4AB3F7
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$76.90
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
The RXM range of miniature relays has relays from 2 to 4 poles with 3 to 12A contact ratings. There is a good selection of relays sockets and accessories to choose from. This 4 pole relay has four CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 6 A at 277 Vac and 8 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 120 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
Additional Information
Test Levels:
level A group mounting
Warranty:
18 months
Net Weight:
0.037 kg
Average Consumption:
1.2 VA 60 Hz
Average Coil Consumption In Va:
1.2-1.2 60 Hz
Protection Category:
RT I
Device Short Name:
RXM
Reset Time:
20 ms
Safety Reliability Data:
B10d = 100000
Utilisation Coefficient:
0.2
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV 1.2/50 µs
Control Type:
without lockable test button
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
Ambient Air Temperature For Operation:
-40-55 °C
Shape Of Pin:
flat
Rohs Exemption Information:
Yes
Maximum Switching Voltage:
250 V IEC
Product Or Component Type:
plug-in relay
Pollution Degree:
2
Status Led:
with
[Uc] Control Circuit Voltage:
120 V AC 50/60 Hz
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Continuous Output Current:
0.208333333333333
Rated Operational Voltage Limits:
96...132 V AC
Series Name:
Miniature
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Operating Time:
20 ms
Contacts Type And Composition:
4 C/O
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Standards:
UL 508 || CSA C22.2 No 14 || IEC 61810-1
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Range Of Product:
Harmony Electromechanical Relays
Ambient Air Temperature For Storage:
-40-85 °C
[Ie] Rated Operational Current:
3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
Circularity Profile:
ENVEOLI2106019EN
Device Presentation:
complete product
China Rohs Regulation:
X
Shock Resistance:
10 gnin operation || 30 gnnot operating
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Electrical Durability:
100000 cycles resistive
Load Current:
6 A 250 V AC || 6 A 28 V DC
Environmental Disclosure:
ENVPEP2106019EN
Drop-Out Voltage Threshold:
>= 0.15 Uc
Mechanical Durability:
10000000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Average Resistance:
4430 Ohm 20 °C +/- 15 %
Operating Position:
any position
Maximum Switching Capacity:
1500 VA/168 W
Reach Free Of Svhc:
Yes
Contacts Material:
AgNi
Sustainable Offer Status:
Green Premium product
