Schneider Electric RXM4GB1F7 Miniature Relay 4C/O Low Sw 120Vac
Schneider Electric
$7.32
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

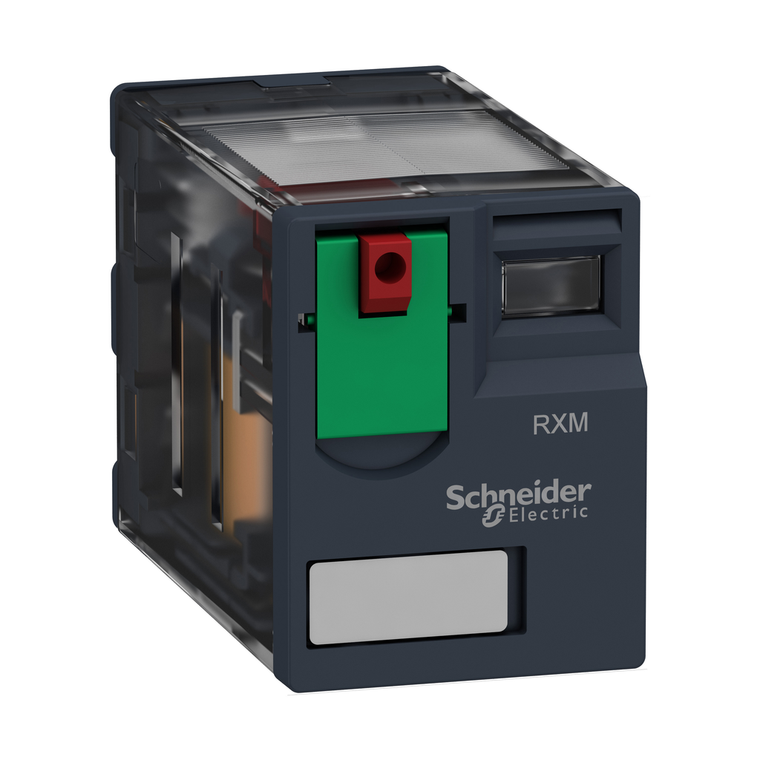

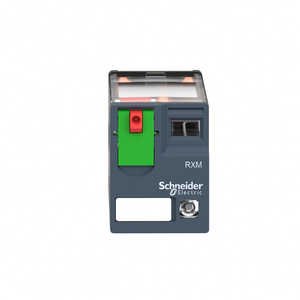

Schneider Electric RXM4GB1F7 Miniature Relay 4C/O Low Sw 120Vac
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- [Ithe] Conventional Enclosed Thermal Current:
- 3 A -40-55 °C
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-55 °C
- Test Levels:
- level A group mounting
- Device Presentation:
- complete product
- Average Resistance:
- 3630 Ohm 20 °C +/- 15 %
- China Rohs Regulation:
- X
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Electrical Durability:
- 100000 cycles resistive depending on mounting position and working environment
- Load Current:
- 3 A 250 V AC || 3 A 28 V DC
- Rated Operational Voltage Limits:
- 96...132 V AC
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Series Name:
- Miniature
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Environmental Disclosure:
- ENVPEP2106019EN
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reach Free Of Svhc:
- Yes
- Pollution Degree:
- 2
- Rohs Exemption Information:
- Yes
- Control Type:
- lockable test button
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Time:
- 20 ms
- Mechanical Durability:
- 10000000 cycles
- Contacts Type And Composition:
- 4 C/O
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Net Weight:
- 0.037 kg
- Maximum Switching Voltage:
- 250 V IEC
- Utilisation Coefficient:
- 0.2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range Of Product:
- Harmony Electromechanical Relays
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Status Led:
- without
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Minimum Switching Capacity:
- 15 mW 3 mA, 5 V
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Protection Category:
- RT I
- Device Short Name:
- RXM
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shape Of Pin:
- flat
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Maximum Switching Capacity:
- 750 VA/84 W
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Contacts Material:
- gold plated bifurcated silver
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Reset Time:
- 20 ms
- Operating Position:
- any position
- Circularity Profile:
- ENVEOLI2106019EN
- [Ie] Rated Operational Current:
- 2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
- Average Consumption:
- 1.2 VA 60 Hz
