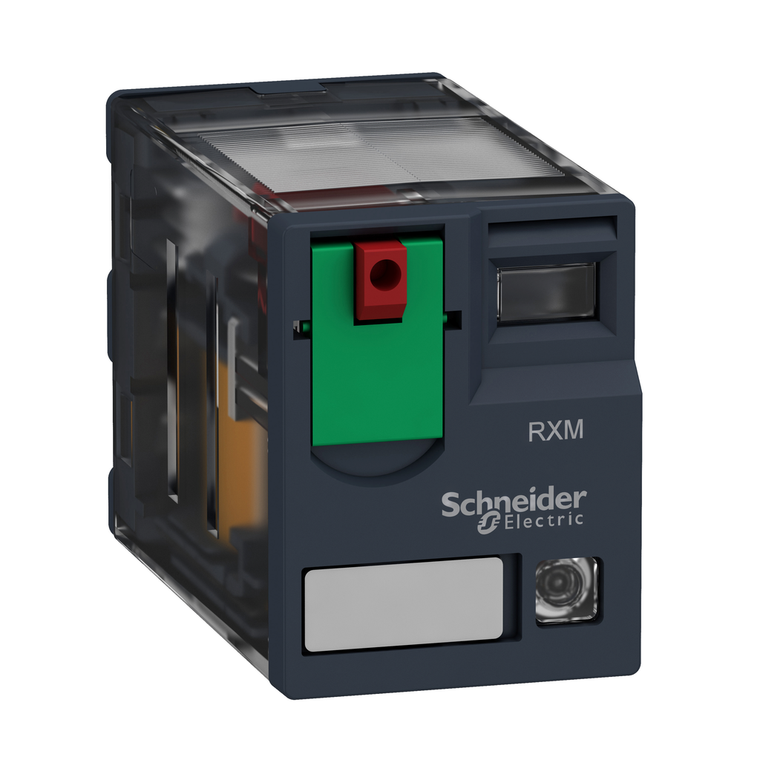

Schneider Electric RXM4GB2B7 Miniature Relay Led 4C/O Low Sw 24Vac

(No reviews yet) Write a Review
SKU:
RXM4GB2B7
UPC:
3389119403979
Condition:
New
Average Consumption:
1.2 VA 60 Hz
Contacts Material:
gold plated bifurcated silver
China Rohs Regulation:
X
[Ie] Rated Operational Current:
2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
Rated Operational Voltage Limits:
19.2...26.4 V AC
Maximum Switching Voltage:
250 V IEC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Switching Capacity:
750 VA/84 W
Contacts Type And Composition:
4 C/O
Utilisation Coefficient:
0.2
[Ithe] Conventional Enclosed Thermal Current:
3 A -40-55 °C
Pollution Degree:
2
Rohs Exemption Information:
Yes
Range Of Product:
Harmony Electromechanical Relays
Control Type:
lockable test button
Load Current:
3 A 250 V AC || 3 A 28 V DC
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Warranty:
18 months
Operating Position:
any position
Device Presentation:
complete product
Protection Category:
RT I
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Sustainable Offer Status:
Green Premium product
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz
Operating Time:
20 ms
Product Or Component Type:
plug-in relay
Shape Of Pin:
flat
Average Resistance:
180 Ohm 20 °C +/- 15 %
Reset Time:
20 ms
Status Led:
with
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Test Levels:
level A group mounting
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Ambient Air Temperature For Storage:
-40-85 °C
Average Coil Consumption In Va:
1.2-1.2 60 Hz
Net Weight:
0.037 kg
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Shock Resistance:
10 gnin operation || 30 gnnot operating
Environmental Disclosure:
ENVPEP2106019EN
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Drop-Out Voltage Threshold:
>= 0.15 Uc
Reach Free Of Svhc:
Yes
Circularity Profile:
ENVEOLI2106019EN
Minimum Switching Capacity:
15 mW 3 mA, 5 V
Mechanical Durability:
10000000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Ambient Air Temperature For Operation:
-40-55 °C
Device Short Name:
RXM
Series Name:
Miniature
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV 1.2/50 µs
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Electrical Durability:
100000 cycles resistive depending on mounting position and working environment
Brochure:
View
Catalog:
View
Datasheet:
View
$8.30

Description

This Harmony RXM miniature plug-in relay has a control coil voltage of 24V AC and has 4 changeover contacts quadruple pole double throw with a rating of 3A." "It has a large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
