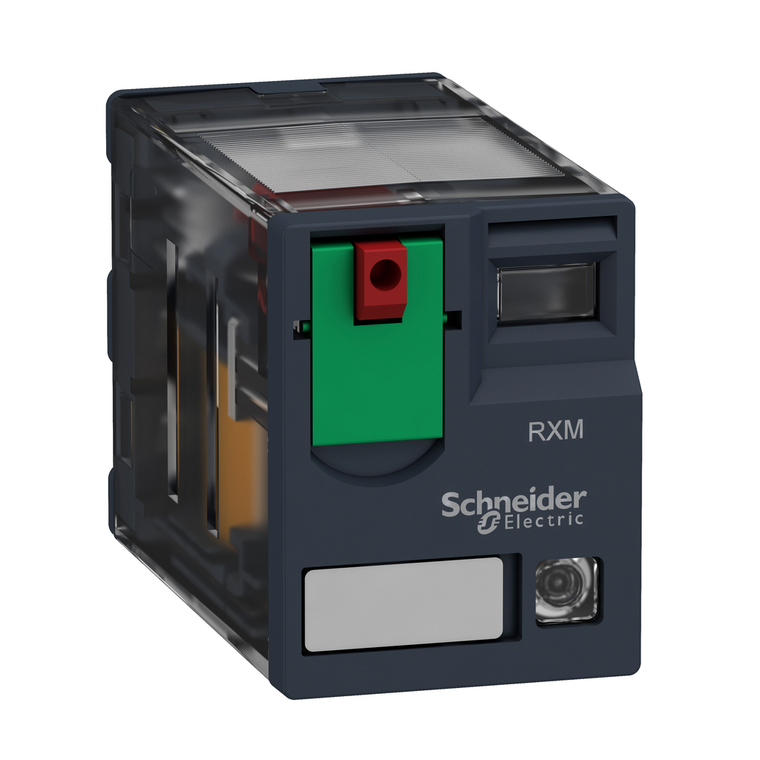

Schneider Electric RXM4GB2F7 Miniature Relay Led 4Co Low Sw 120Vac Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric RXM4GB2F7 Miniature Relay Led 4Co Low Sw 120Vac Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RXM4GB2F7

UPC:

3.38912E+12

MPN:

Condition:

New

Drop-Out Voltage Threshold:

>= 0.15 Uc

Contacts Type And Composition:

4 C/O

Shape Of Pin:

flat

Net Weight:

0.037 kg

Reach Free Of Svhc:

Yes

Dielectric Strength:

1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles

Load Current:

3 A 250 V AC || 3 A 28 V DC

Control Type:

lockable test button

Standards:

IEC 61810-1 || CSA C22.2 No 14 || UL 508

Test Levels:

level A group mounting

[Uc] Control Circuit Voltage:

120 V AC 50/60 Hz

Contacts Material:

gold plated bifurcated silver

Device Presentation:

complete product

Ambient Air Temperature For Storage:

-40-85 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V CSA || 300 V UL

Operating Position:

any position

Mechanical Durability:

10000000 cycles

Reset Time:

20 ms

Operating Rate:

<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load

Product Certifications:

UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV 1.2/50 µs

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Electrical Durability:

100000 cycles resistive depending on mounting position and working environment

Range Of Product:

Harmony Electromechanical Relays

Average Coil Consumption In Va:

1.2-1.2 60 Hz

Pollution Degree:

2

Vibration Resistance:

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-55 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Minimum Switching Capacity:

15 mW 3 mA, 5 V

Circularity Profile:

ENVEOLI2106019EN

Product Or Component Type:

plug-in relay

Rated Operational Voltage Limits:

96...132 V AC

Average Consumption:

1.2 VA 60 Hz

Shock Resistance:

10 gnin operation || 30 gnnot operating

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Average Resistance:

4430 Ohm 20 °C +/- 15 %

Maximum Switching Capacity:

750 VA/84 W

Maximum Switching Voltage:

250 V IEC

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP2106019EN

[Ithe] Conventional Enclosed Thermal Current:

3 A -40-55 °C

Operating Time:

20 ms

Protection Category:

RT I

Utilisation Coefficient:

0.2

China Rohs Regulation:

X

[Ie] Rated Operational Current:

2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL

Series Name:

Miniature

Device Short Name:

RXM

Status Led:

with

Warranty:

18 months

Rohs Exemption Information:

Yes
