Schneider Electric

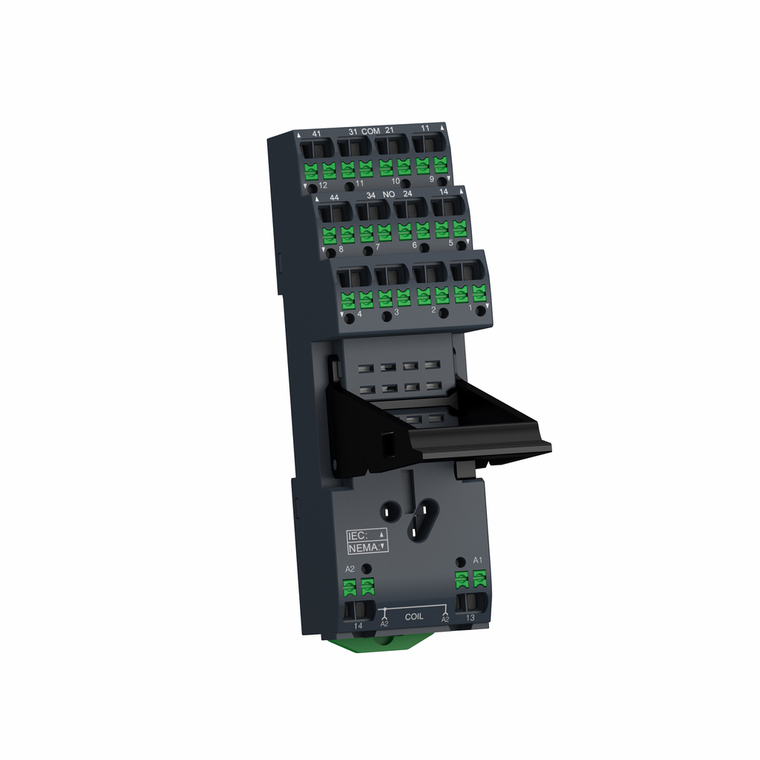

Schneider Electric RXZE14P Push-In Socket With Clamp For Rxm2/Rxm4

SKU:

RXZE14P

UPC:

3606481465764

MPN:

Condition:

New

Connections - Terminals:

spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end

Ambient Air Temperature For Operation:

-40-55 °C

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Net Weight:

0.080 kg

Rohs Exemption Information:

Yes

Height:

85 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Marking:

CE

Pollution Degree:

3

Mercury Free:

Yes

Circularity Profile:

N/A

Standards:

IEC 61984

Shape Of Pin:

flat

Product Certifications:

CSA || Lloyd's || UL || EAC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

98 mm

Contact Terminal Arrangement:

separate

Product Or Component Type:

socket

Fixing Mode:

clip-on 35 mm symmetrical DIN rail)

Ambient Air Temperature For Storage:

-40-85 °C

Product Compatibility:

plug-in relay RXM 2 C/O || plug-in relay RXM 4 C/O

[Ui] Rated Insulation Voltage:

250 V

Dielectric Strength:

2500 V

[Ue] Rated Operational Voltage:

250 V IEC || 300 V UL

Width:

31 mm

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc:

Yes

China Rohs Regulation:

X

Warranty:

18 months

Device Short Name:

RXZ

Sale Per Indivisible Quantity:

10

Overvoltage Category:

III

Sustainable Offer Status:

Green Premium product

Contacts Type And Composition:

4 C/O

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ith] Conventional Free Air Thermal Current:

12 A 2 C/O relays || 6 A 4 C/O relays

Ip Degree Of Protection:

IP20

Range Of Product:

Harmony Electromechanical Relays || Harmony Timer Relays

Environmental Disclosure:

ENVPEP1511020EN
