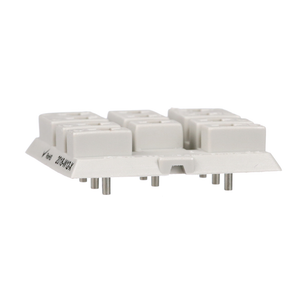

Schneider Electric RXZE1M4C Simple Socket 29Mm / Mixed Terminations Pack of 10
This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
- China Rohs Regulation:
- X
- Tightening Torque:
- < 0.8 N.m M3
- Standards:
- IEC 61984
- Net Weight:
- 0.053 kg
- Mercury Free:
- Yes
- Dielectric Strength:
- 2500 V
- Pollution Degree:
- 3
- Overvoltage Category:
- III
- Ambient Air Temperature For Storage:
- -55-85 °C
- Device Short Name:
- RXZ
- Ambient Air Temperature For Operation:
- -40-55 °C
- Contacts Type And Composition:
- 4 C/O
- Range Of Product:
- Harmony Electromechanical Relays
- Sale Per Indivisible Quantity:
- 10
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1511020EN
- Contact Terminal Arrangement:
- mixed
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 250 V AC IEC
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Product Compatibility:
- plug-in relay RXM 2 C/O || plug-in relay RXM 4 C/O
- [Ith] Conventional Free Air Thermal Current:
- 0.291666666666667
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Marking:
- CE
- Width:
- 29 mm
- Product Or Component Type:
- socket
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connections - Terminals:
- screw clamp terminals, 1 x 0.2...1 x 1.0 mm² AWG 24...AWG 17) flexible with cable end || screw clamp terminals, 2 x 0.2...2 x 1.0 mm² AWG 24...AWG 17) flexible with cable end || screw clamp terminals, 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid w
- Fixing Mode:
- by screw panel) || clip-on 35 mm symmetrical DIN rail)
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
