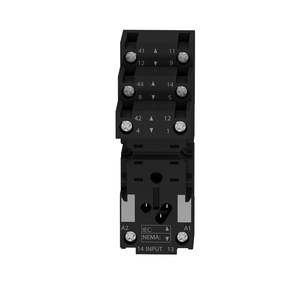

Schneider Electric RXZE2S114M Separated Conn Socket For Rxm2/4 Pack of 10

(No reviews yet) Write a Review
SKU:
RXZE2S114M
UPC:
3389119404280
Condition:
New
Fixing Mode:
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Circularity Profile:
N/A
Range Of Product:
Harmony Electromechanical Relays || Harmony Timer Relays
Product Compatibility:
plug-in relay RXM 4 C/O || plug-in relay REXL 4 C/O
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-40-55 °C
Environmental Disclosure:
ENVPEP1511021EN
Device Short Name:
RXZ
Contacts Type And Composition:
4 C/O
Net Weight:
0.07 kg
Product Or Component Type:
socket
[Ue] Rated Operational Voltage:
< 250 V
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Contact Terminal Arrangement:
separate
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-40-85 °C
Connections - Terminals:
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
Tightening Torque:
< 1 N.m M3
Toxic Heavy Metal Free:
Yes
Standards:
IEC 61984
Reach Regulation:
Free of Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Rohs Exemption Information:
Yes
Product Certifications:
CSA || Lloyd's || UL
Width:
27 mm
Shape Of Pin:
flat
Pollution Degree:
3
Dielectric Strength:
2500 V
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc:
Yes
Marking:
CE
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Overvoltage Category:
III
Sale Per Indivisible Quantity:
10
Warranty:
18 months
China Rohs Regulation:
X
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric RXZE2S114M Separated Conn Socket For Rxm2/4 Pack of 10
  • Schneider Electric RXZE2S114M Separated Conn Socket For Rxm2/4 Pack of 10
  • Schneider Electric RXZE2S114M Separated Conn Socket For Rxm2/4 Pack of 10
$61.00

Description

This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
