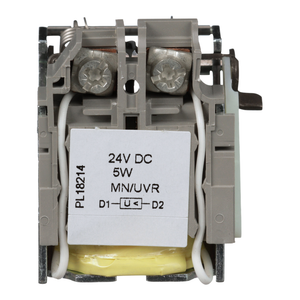

Schneider Electric S29410 Circuit Breaker Undervoltage Trip 24V Dc
Schneider Electric
Schneider Electric S29412 Circuit Breaker Undervoltage Trip 48V Dc
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
- Mercury Free:
- Yes
- Tightening Torque:
- 1.4-1.4 N.m
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protection Type:
- undervoltage
- Rohs Exemption Information:
- Yes
- Rated Voltage:
- 48-48 V DC
- Accessory / Separate Part Category:
- trip unit accessory
- Range Of Product:
- PowerPact H || PowerPact J || PowerPact L
- Warranty:
- 18 months
- Product Or Component Type:
- trip unit
- Eu Rohs Directive:
- Compliant with Exemptions
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
