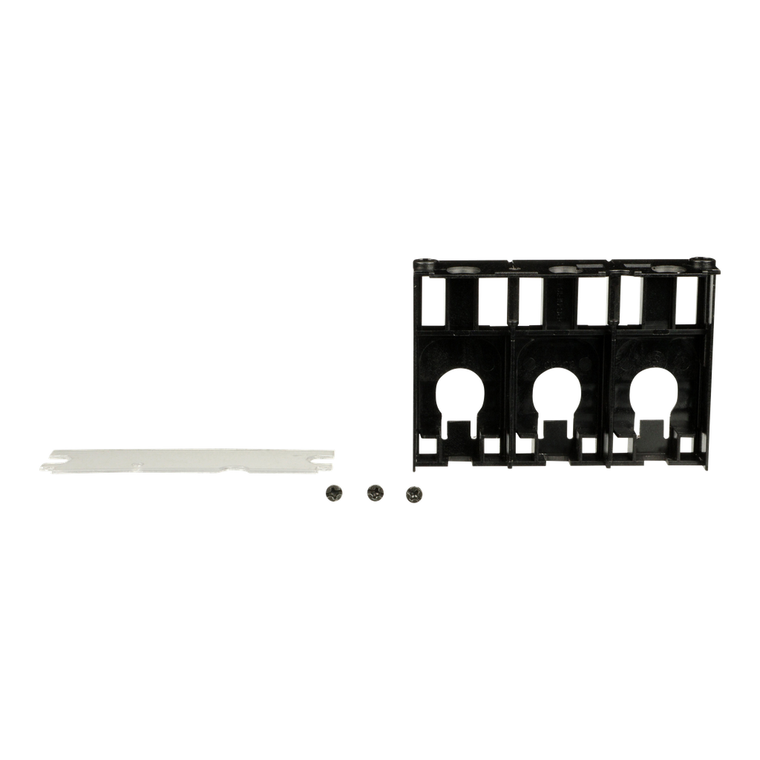

Schneider Electric S37447 Circuit Breaker Short Lug Shield
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The TeSys GV5PB/GV6PB product family are three-pole UL 489 motor protection circuit breakers when combined with a contactor that makes up an entire branch circuit. Save panel space and simplify installation using a two-component solution. Features of the product range include selectable trip class 5/ 10/20 and an adjustable short-circuit time of 5 to 13 times Ir. Solutions cover a range of application needs from compact and cost effective to advanced control and predictive alarming. Choose the best offer based on your application needs. Terminal shields are used for front connection with cables or insulated bars. They comprise two parts assembled with captive screws, forming an IP40 cover. The top part is equipped with sliding grids for precise adaptation to cables or insulated bars. The rear part completely blocks off the connection zone. Terminal shields may be mounted upstream and downstream of the circuit breaker. This PowerPact Multistandard, lug shield is a connection accessory and is for a 3P, 150A breaker. This lug shield can be mounted in either downstream or upstream positions.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Accessory / Separate Part Category:
- connection accessory
- Range Of Product:
- PowerPact H
- Warranty:
- 18 months
- Awg Gauge:
- AWG 3/0
- Environmental Disclosure:
- ENVPEP1311006EN
- Product Or Component Type:
- lug shield
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1311006EN
- Product Compatibility:
- short lug
- Location Of Connection:
- downstream || upstream
- Toxic Heavy Metal Free:
- Yes
- Line Rated Current:
- 150 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
