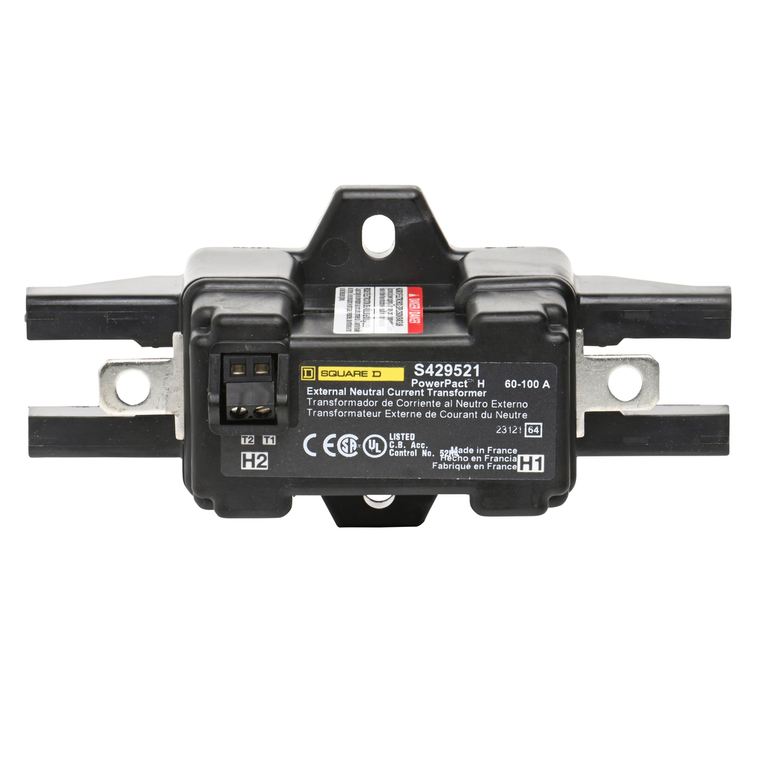

Schneider Electric S429521 External Neutral Current Transformer
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D PowerPact H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The external neutral current transformer is a required sensor for 3 pole circuit breaker in a system with a distributed neutral to measure the neutral current in oder to protect neutrak conducter and protect against ground faults. This current trasformer could be used with H-frame PowerPacT circuit breakers with current rating 60 to 100A The neutral current transformer is connected in the same way for unit-mount, plug-in or drawout devices, cross-sectional area is AWG 22-AWG 16.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 6-6 N.m (AWG 14...AWG 10)
- Line Rated Current:
- 60-100 A
- Warranty:
- 18 months
- Product Or Component Type:
- current transformer
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Accessory / Separate Part Category:
- connection accessory
- Product Certifications:
- CSA || UL
- Range Of Product:
- PowerPact H || MicroLogic
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
