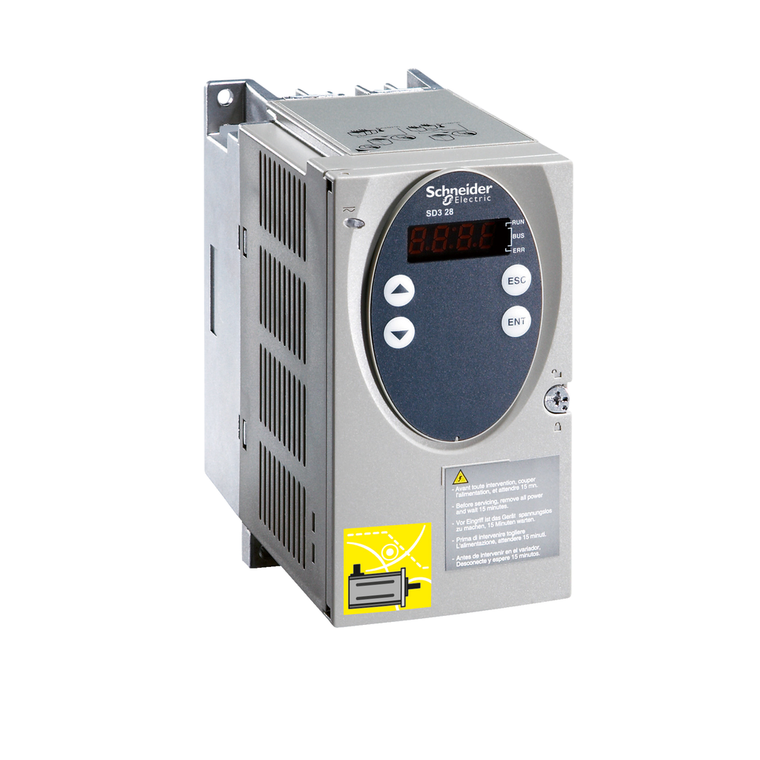

Schneider Electric SD328AU68S2 Lexium Stepperdrive (Analog, P/D, Modbus

(No reviews yet) Write a Review

Write a Review

Schneider Electric SD328AU68S2 Lexium Stepperdrive (Analog, P/D, Modbus

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SD328AU68S2

UPC:

3389119224383

MPN:

Condition:

New

Warranty:

18 months

China Rohs Regulation:

X

Local Signalling:

1 LED - ERR CANopen || 1 LED - RUN CANopen

Physical Interface:

2-wire RS 485 Modbus || RS422 - pulse/direction interface || RS422 - signal input ENC_A, ENC_B, ENC_I

Standards:

IEC 61800-5-1 || IEC 61800-3 || EN/IEC 61800-3 environment 2 || IEC 50178 || IEC 61800-3 environment 1

Product Certifications:

cUL || TÜV || UL

Phase:

single phase

Environmental Disclosure:

ENVPEP111115EN

[Us] Rated Supply Voltage:

100...120 V - 15...10 % || 200...230 V - 15...10 %

Electrical Connection:

connector RJ45 CANopen interface || connector RJ45 Modbus interface || spring terminal CANopen interface

Pollution Degree:

level 2

Voltage State 1 Guaranteed:

15...30 V 24 V input signals

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Installed Device:

127 stepper motor drives CANopen || 31 stepper motor drives Modbus

Device Short Name:

SD328

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)

Short-Circuit Current:

0.5 kA

Safety Function:

safe torque off safety function machine IEC/EN 61800-5-2 || safe torque off safety function machine ISO 13849-1 level d || safe torque off safety function system process EN/IEC 61508 level SIL2 || safe torque off safety function system process IEC/EN

Depth:

140 mm

Current Consumption:

5 A 230 V main supply || 7 A 115 V main supply || <= 0.2 mA 24 V control voltage

Bus Type:

fieldbus

Analogue Input Type:

voltage - 10...10 V 14 bits 0.25 ms

Supply Voltage Limits:

200-240 V || 100-120 V

Format Of The Drive:

block

Method Of Access:

slave CANopen

Inrush Current:

60 A

Nominal Power:

280 W 115 V || 420 W 230 V

Ambient Air Temperature For Operation:

0-50 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electromagnetic Compatibility:

electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5

Ambient Air Temperature For Storage:

-25-70 °C

Type Of Cooling:

fan

Vibration Resistance:

1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm 3-13 Hz)IEC 60068-2-6

Maximum Motor Phase Current:

6.8 A

Mercury Free:

Yes

Input Current:

10 mA 24 V input signals

Pvc Free:

Yes

Communication Interface:

analogue input, Integrated || Modbus fieldbus, Integrated || CANopen fieldbus, Integrated

Mode Of Transmission:

RTU Modbus

Input Voltage:

24 V -15 %/+20 % 24 V control voltage || -10...10 V analogue input signals

Number Of Addresses:

1-127 CANopen || 1-247 Modbus

Transmission Rate:

125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen || 9600, 19200, 38400 bps Modbus

Supply Voltage Type:

AC/DC

Rohs Exemption Information:

Yes

Associated Fuse Rating:

10 A 115 V || 6 A 230 V

Network Frequency Limits:

50-60 Hz - 15...10 %)

Communication Service:

1 PDO configurable CANopen || 2 SDOs receive CANopen || 2 SDOs send CANopen || 3 PDOs as per DSP 402 CANopen || CiA DSP 402 profile CANopen || diagnostics (08) Modbus || emergency CANopen || note guarding, heartbeat CANopen || read device identificat

Resistance:

5 kOhm pulse/direction interface) || 10 kOhm analogue input signals)

Relative Humidity:

5-85 % without condensation

Range Of Product:

Lexium SD3

Maximum Output Frequency:

400 kHz pulse/direction interface A/B || 200 kHz pulse/direction interface pulse/direction

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Circularity Profile:

ENVEOLI111103EN

Overvoltage Category:

III

Maximum Switching Current:

50 mA 24 V output signals)

Product Or Component Type:

motion stepper drive

Maximum Mechanical Speed:

3000 rpm

Output Voltage:

<= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)

Ip Degree Of Protection:

IP20 || on upper part: IP40 (without removal of protective film)

Maximum Voltage Drop:

<1 V 50 mA load 24 V output signals

Sustainable Offer Status:

Green Premium product

Maximum Leakage Current:

30 mA <10 m IEC 60990-3

Width:

72 mm

Maximum Input Frequency:

200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction || 400 kHz signal input ENC_A, ENC_B, ENC_I A/B

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Voltage State 0 Guaranteed:

-3...5 V 24 V input signals

Net Weight:

1.2 kg

Residual Ripple:

< 5 % 24 V control voltage)

Height:

145 mm

Data Format:

8 bits, 1 stop, even parity Modbus || 8 bits, no parity, 1 stop Modbus || 8 bits, no parity, 2 stop Modbus || 8 bits, odd parity, 1 stop Modbus

Marking:

CE

Power Losses:

<= 65 W
