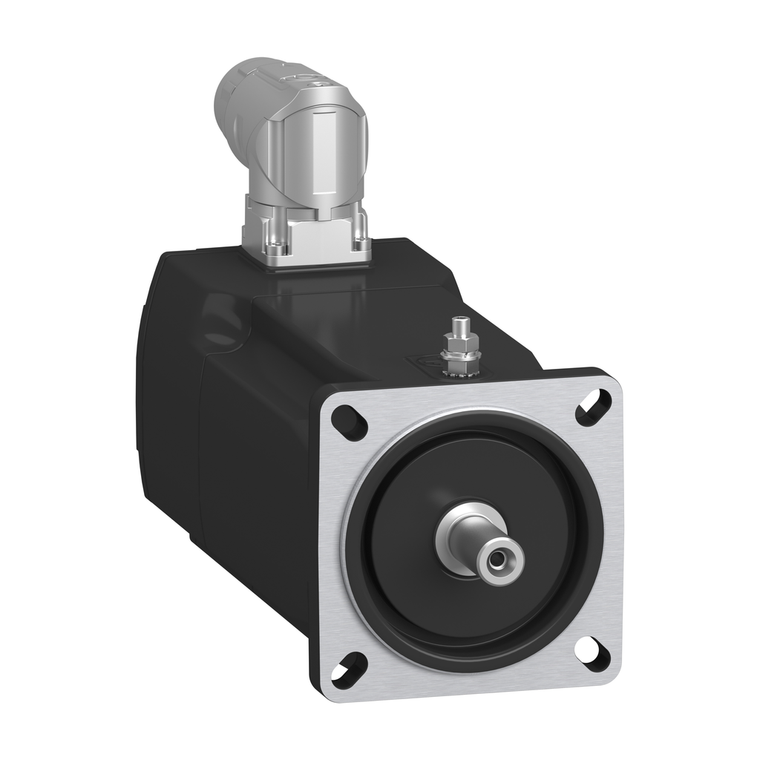

Schneider Electric SH30701P0BA4100 Sh3 Motor 070.1 Mlt Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30701P0BA4100 Sh3 Motor 070.1 Mlt Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30701P0BA4100

UPC:

3.60648E+12

MPN:

Condition:

New

Centring Collar Depth:

2.5 mm

Maximum Axial Force Fa:

160 N

Centring Collar Diameter:

60 mm

Nominal Torque:

1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase

Maximum Radial Force Fr:

900 N 1000 rpm

Mercury Free:

Yes

Phase:

three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Stator Resistance:

10.4 Ohm

Continuous Power:

690 W

Stator Inductance:

42.6 mH

Circle Diameter Of The Mounting Holes:

82 mm

Continuous Stall Torque:

1.25 N.m 115...480 V three phase

Rotor Inertia:

0.250 kg.cm²

Encoder Type:

absolute multiturn Hiperface DSL

Net Weight:

2.1 kg

Electrical Connection:

rotatable right angled connector

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Sustainable Offer Status:

Green Premium product

Range Compatibility:

PacDrive 3

Number Of Motor Poles:

3

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Holding Brake:

without

Torque Constant:

0.69 N.m/A 120 °C

Environmental Disclosure:

ENVPEP111049EN

Nominal Output Power:

370 W 230 V single phase || 690 W 400 V three phase || 690 W 480 V three phase

Product Or Component Type:

servo motor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Mounting Holes:

4

Rohs Exemption Information:

Yes

Shaft Diameter:

11 mm

Device Short Name:

SH3.....P

[Us] Rated Supply Voltage:

115...480 V

Motor Flange Size:

70 mm

Type Of Cooling:

natural convection

Shaft Length:

23 mm

Continuous Stall Current:

1.8 A

Mounting Holes Diameter:

5.5 mm

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Back Emf Constant:

46 V/krpm 20 °C

China Rohs Regulation:

X

Shaft End:

smooth shaft

Maximum Mechanical Speed:

8000 rpm

Maximum Current Irms:

5.7 A

Mounting Support:

international standard flange

Pvc Free:

Yes

Length:

154 mm

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
