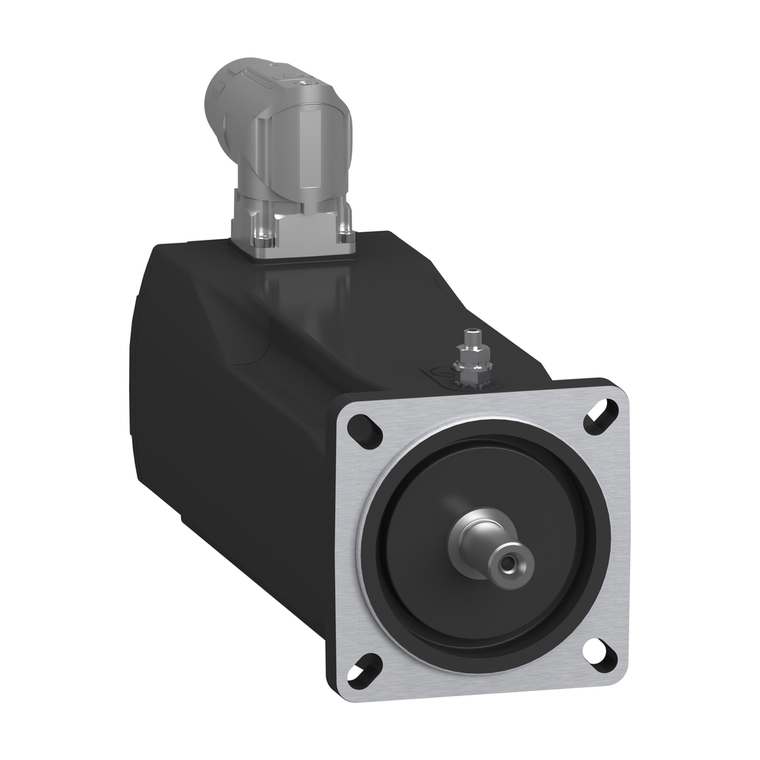

Schneider Electric SH30701P0BF4100 Sh3 Motor 070.1 Mlt Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30701P0BF4100 Sh3 Motor 070.1 Mlt Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30701P0BF4100

UPC:

3.60648E+12

MPN:

Condition:

New

Device Short Name:

SH3.....P

Nominal Output Power:

370 W 230 V single phase || 690 W 400 V three phase || 690 W 480 V three phase

Stator Resistance:

10.4 Ohm

Length:

180 mm

Holding Torque:

3 N.m

Product Or Component Type:

servo motor

Nominal Torque:

1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase

Shaft Length:

23 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Radial Force Fr:

900 N 1000 rpm

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

60 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

[Us] Rated Supply Voltage:

115...480 V

Circle Diameter Of The Mounting Holes:

82 mm

Holding Brake:

with

Net Weight:

2.5 kg

Number Of Mounting Holes:

4

Motor Flange Size:

70 mm

Type Of Cooling:

natural convection

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Connection:

straight connector

Centring Collar Depth:

2.5 mm

Back Emf Constant:

46 V/krpm 20 °C

Mounting Support:

international standard flange

Mounting Holes Diameter:

5.5 mm

Pvc Free:

Yes

Shaft Diameter:

11 mm

Rotor Inertia:

0.322 kg.cm²

Maximum Current Irms:

5.7 A

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

8000 rpm

China Rohs Regulation:

X

Continuous Power:

690 W

Torque Constant:

0.69 N.m/A 120 °C

Environmental Disclosure:

ENVPEP111049EN

Continuous Stall Current:

1.8 A

Circularity Profile:

N/A

Brake Pull-In Power:

7 W

Mercury Free:

Yes

Range Compatibility:

PacDrive 3

Stator Inductance:

42.6 mH

Phase:

three phase

Continuous Stall Torque:

1.25 N.m 115...480 V three phase

Encoder Type:

absolute multiturn Hiperface DSL

Maximum Axial Force Fa:

160 N

Shaft End:

smooth shaft

Number Of Motor Poles:

3
