Schneider Electric

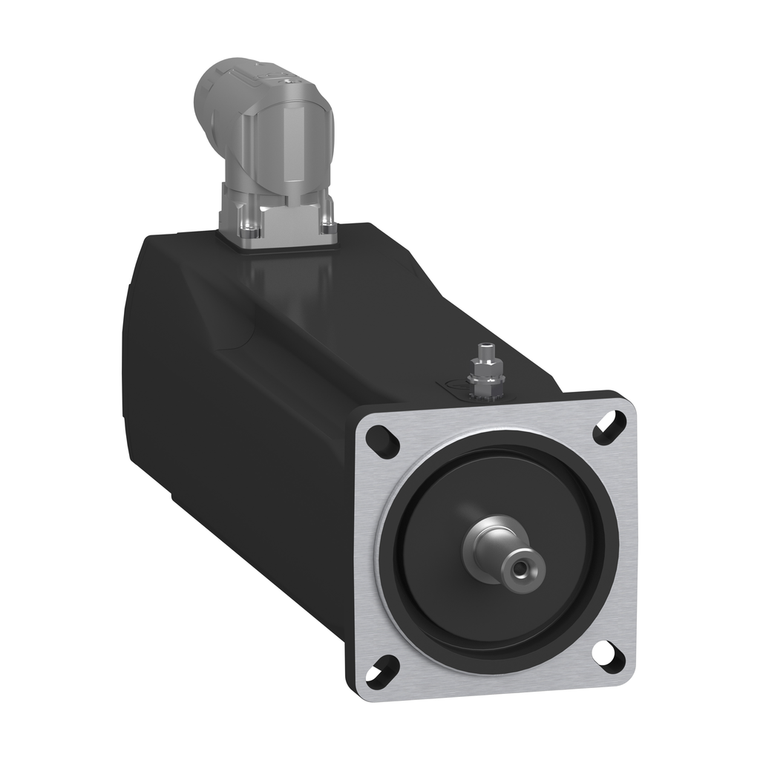

Schneider Electric SH30702P0AF4100 Sh3 Motor 070.2 Sgl Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH30702P0AF4100 Sh3 Motor 070.2 Sgl Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30702P0AF4100

UPC:

3.60648E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Rotor Inertia:

0.482 kg.cm²

Range Compatibility:

PacDrive 3

Nominal Torque:

2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase

Centring Collar Diameter:

60 mm

Shaft End:

smooth shaft

Electrical Connection:

rotatable right angled connector

Centring Collar Depth:

2.5 mm

Peak Stall Torque:

7.6 N.m 115...480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

international standard flange

Type Of Cooling:

natural convection

Holding Torque:

3 N.m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Encoder Type:

absolute single turn Hiperface DSL

Back Emf Constant:

48 V/krpm 20 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft Diameter:

11 mm

Stator Inductance:

21.3 mH

Net Weight:

3.2 kg

Maximum Current Irms:

11.8 A

China Rohs Regulation:

X

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Environmental Disclosure:

ENVPEP111049EN

Speed Feedback Resolution:

262144 points/turn

Nominal Output Power:

610 W 230 V single phase || 1130 W 400 V three phase || 1130 W 480 V three phase

Number Of Motor Poles:

3

Device Short Name:

SH3.....P

Rohs Exemption Information:

Yes

Continuous Power:

1130 W

Maximum Axial Force Fa:

160 N

Torque Constant:

0.7 N.m/A 120 °C

Motor Flange Size:

70 mm

Circularity Profile:

N/A

Number Of Mounting Holes:

4

Brake Pull-In Power:

7 W

Phase:

three phase

Circle Diameter Of The Mounting Holes:

82 mm

Stator Resistance:

4.2 Ohm

Shaft Length:

23 mm

Mounting Holes Diameter:

5.5 mm

Pvc Free:

Yes

Continuous Stall Current:

2.9 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Brake:

with

Mercury Free:

Yes

Length:

213 mm

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Maximum Mechanical Speed:

8000 rpm

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Torque:

2.04 N.m 115...480 V three phase

Maximum Radial Force Fr:

990 N 1000 rpm

Product Or Component Type:

servo motor
