Schneider Electric

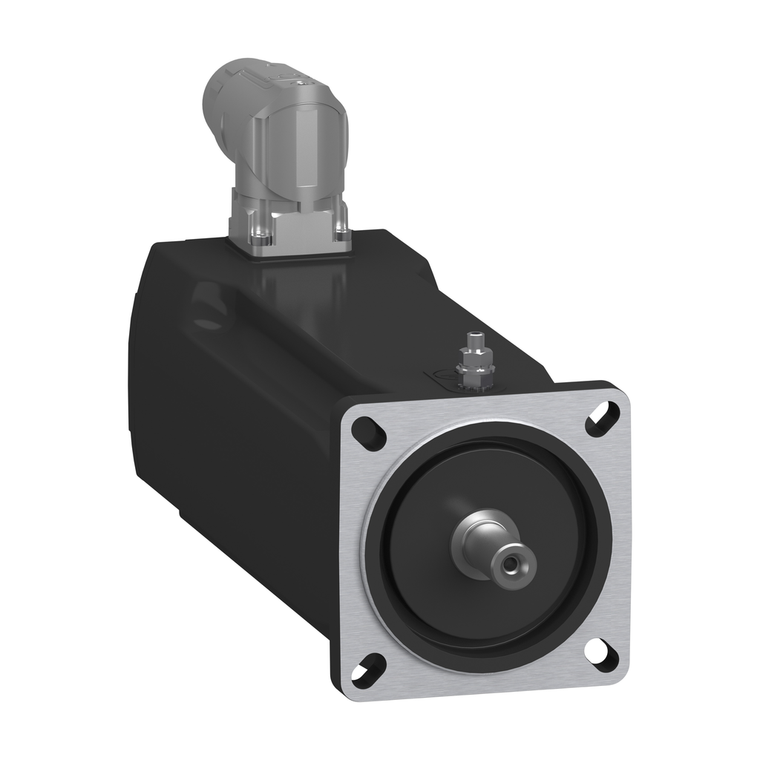

Schneider Electric SH30702P0BA4100 Sh3 Motor 070.2 Mlt Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH30702P0BA4100 Sh3 Motor 070.2 Mlt Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30702P0BA4100

UPC:

3.60648E+12

MPN:

Condition:

New

Mounting Holes Diameter:

5.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Stall Current:

2.9 A

Mounting Support:

international standard flange

Range Compatibility:

PacDrive 3

Maximum Axial Force Fa:

160 N

Shaft End:

smooth shaft

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

China Rohs Regulation:

X

Number Of Mounting Holes:

4

Type Of Cooling:

natural convection

Stator Inductance:

21.3 mH

Torque Constant:

0.7 N.m/A 120 °C

Number Of Motor Poles:

3

Continuous Power:

1130 W

Shaft Length:

23 mm

Product Or Component Type:

servo motor

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Length:

187 mm

Holding Brake:

without

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Continuous Stall Torque:

2.04 N.m 115...480 V three phase

Stator Resistance:

4.2 Ohm

Maximum Radial Force Fr:

1050 N 1000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Us] Rated Supply Voltage:

115...480 V

Mercury Free:

Yes

Centring Collar Diameter:

60 mm

Nominal Torque:

2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase

Environmental Disclosure:

ENVPEP111049EN

Peak Stall Torque:

7.6 N.m 115...480 V three phase

Motor Flange Size:

70 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power:

610 W 230 V single phase || 1130 W 400 V three phase || 1130 W 480 V three phase

Rotor Inertia:

0.410 kg.cm²

Maximum Mechanical Speed:

8000 rpm

Circularity Profile:

N/A

Device Short Name:

SH3.....P

Electrical Connection:

rotatable right angled connector

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Encoder Type:

absolute multiturn Hiperface DSL

Back Emf Constant:

48 V/krpm 20 °C

Rohs Exemption Information:

Yes

Maximum Current Irms:

11.8 A

Circle Diameter Of The Mounting Holes:

82 mm

Pvc Free:

Yes

Net Weight:

2.8 kg

Shaft Diameter:

11 mm

Phase:

three phase

Centring Collar Depth:

2.5 mm
