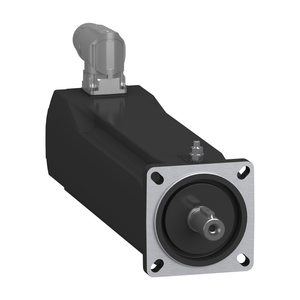

Schneider Electric SH30703P01A2000 Sh3 Motor 070.3 Sgl Ang Ip54

Schneider Electric SH30703P01A2000 Sh3 Motor 070.3 Sgl Ang Ip54

Schneider Electric
SKU:
SH30703P01A2000
|
UPC:
3606485296135
Availability:
Contact us to confirm availability and lead times.
$1,735.59
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.1A and a continuous power of 1330W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 220mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.6kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Additional Information
Stator Resistance:
2.7 Ohm
[Us] Rated Supply Voltage:
115...480 V
Phase:
three phase
Length:
220 mm
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
Environmental Disclosure:
ENVPEP111049EN
Maximum Current Irms:
17 A
Pvc Free:
Yes
Motor Flange Size:
70 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Depth:
2.5 mm
Centring Collar Diameter:
60 mm
Maximum Radial Force Fr:
730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Stator Inductance:
20.3 mH
Encoder Type:
absolute single turn SinCos Hiperface
Holding Brake:
without
Circularity Profile:
N/A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nominal Output Power:
460 W 115 V single phase || 880 W 230 V single phase || 1450 W 400 V three phase || 1550 W 480 V three phase
Type Of Cooling:
natural convection
Net Weight:
3.6 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Nominal Speed:
1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Number Of Motor Poles:
3
Maximum Axial Force Fa:
80 N
Number Of Mounting Holes:
4
Maximum Mechanical Speed:
8000 rpm
Shaft Length:
30 mm
Speed Feedback Resolution:
128 periods
Peak Stall Torque:
11.3 N.m 115...480 V three phase
Warranty:
18 months
Continuous Stall Current:
4.1 A
Electrical Connection:
straight connector
Ip Degree Of Protection:
shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Rohs Exemption Information:
Yes
Shaft Diameter:
14 mm
Circle Diameter Of The Mounting Holes:
82 mm
Device Short Name:
SH3.....P
Mounting Holes Diameter:
5.5 mm
Torque Constant:
0.72 N.m/A 120 °C
Mounting Support:
international standard flange
Range Compatibility:
PacDrive 3
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
servo motor
Shaft End:
smooth shaft
Rotor Inertia:
0.58 kg.cm²
Nominal Torque:
2.95 N.m 115 V single phase || 2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase
Back Emf Constant:
49 V/krpm 20 °C
Continuous Power:
1330 W
Mercury Free:
Yes
