Schneider Electric

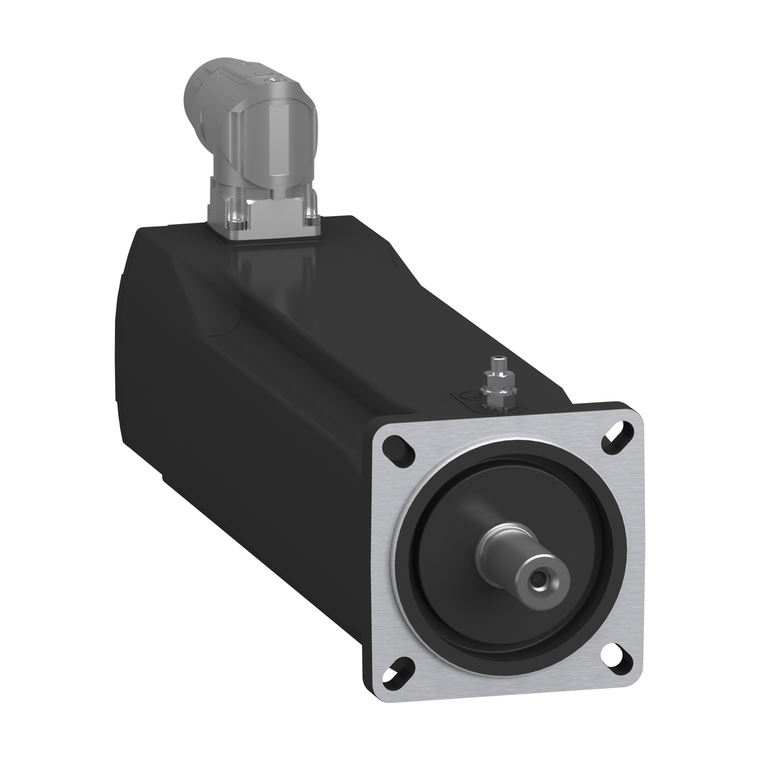

Schneider Electric SH30703P0AF4000 Sh3 Motor 070.3 Sgl Brk Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH30703P0AF4000 Sh3 Motor 070.3 Sgl Brk Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30703P0AF4000

UPC:

3606481803412

MPN:

Condition:

New

Nominal Output Power:

830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase

Mounting Holes Diameter:

5.5 mm

Nominal Torque:

2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

China Rohs Regulation:

X

Maximum Mechanical Speed:

8000 rpm

Type Of Cooling:

natural convection

Length:

246 mm

Continuous Stall Current:

4.1 A

Number Of Motor Poles:

3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Peak Stall Torque:

11.3 N.m 115...480 V three phase

Electrical Connection:

rotatable right angled connector

Device Short Name:

SH3.....P

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Number Of Mounting Holes:

4

Motor Flange Size:

70 mm

Brake Pull-In Power:

7 W

Holding Brake:

with

Circle Diameter Of The Mounting Holes:

82 mm

Rotor Inertia:

0.807 kg.cm²

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP111049EN

Holding Torque:

3 N.m

[Us] Rated Supply Voltage:

115...480 V

Phase:

three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Pvc Free:

Yes

Shaft Length:

30 mm

Stator Inductance:

14.6 mH

Range Compatibility:

PacDrive 3

Centring Collar Diameter:

60 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Encoder Type:

absolute single turn Hiperface DSL

Mercury Free:

Yes

Continuous Power:

1330 W

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

4.0 kg

Torque Constant:

0.72 N.m/A 120 °C

Shaft Diameter:

14 mm

Mounting Support:

international standard flange

Product Or Component Type:

servo motor

Stator Resistance:

2.7 Ohm

Speed Feedback Resolution:

262144 points/turn

Maximum Axial Force Fa:

160 N

Maximum Radial Force Fr:

1050 N 1000 rpm

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Maximum Current Irms:

17 A

Back Emf Constant:

49 V/krpm 20 °C

Shaft End:

smooth shaft

Centring Collar Depth:

2.5 mm
