Schneider Electric

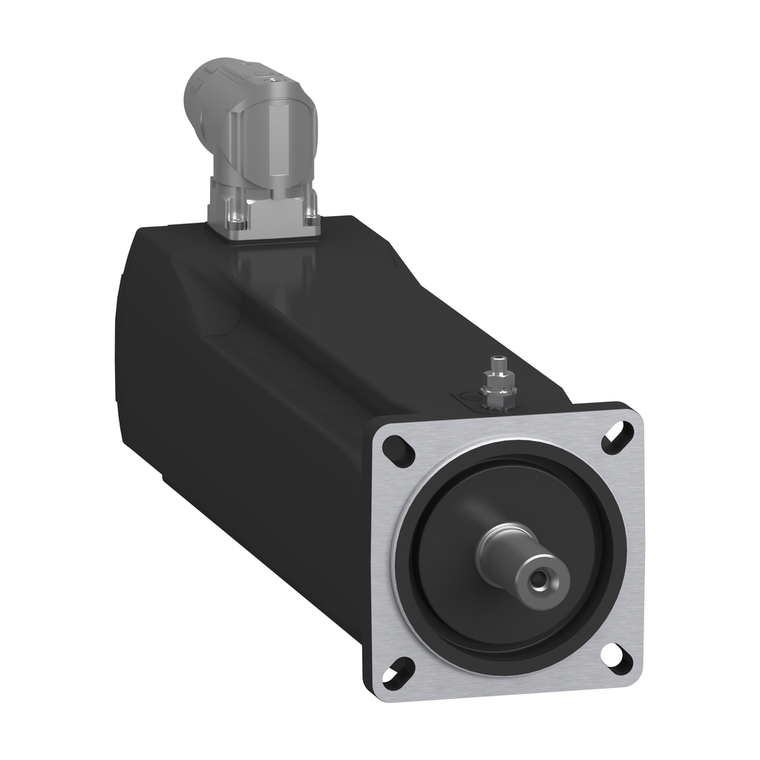

Schneider Electric SH30703P0BF4100 Sh3 Motor 070.3 Mlt Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH30703P0BF4100 Sh3 Motor 070.3 Mlt Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30703P0BF4100

UPC:

3.60648E+12

MPN:

Condition:

New

Shaft End:

smooth shaft

Continuous Power:

1330 W

Back Emf Constant:

49 V/krpm 20 °C

Maximum Mechanical Speed:

8000 rpm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Connection:

rotatable right angled connector

Number Of Mounting Holes:

4

Motor Flange Size:

70 mm

Circle Diameter Of The Mounting Holes:

82 mm

Environmental Disclosure:

ENVPEP111049EN

Holding Brake:

with

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Current Irms:

17 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

three phase

China Rohs Regulation:

X

Pvc Free:

Yes

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Mounting Holes Diameter:

5.5 mm

Shaft Diameter:

14 mm

Number Of Motor Poles:

3

Net Weight:

4.0 kg

Encoder Type:

absolute multiturn Hiperface DSL

Stator Resistance:

2.7 Ohm

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Circularity Profile:

N/A

Rotor Inertia:

0.807 kg.cm²

Length:

246 mm

Torque Constant:

0.72 N.m/A 120 °C

Centring Collar Depth:

2.5 mm

Device Short Name:

SH3.....P

Centring Collar Diameter:

60 mm

Type Of Cooling:

natural convection

Mounting Support:

international standard flange

Maximum Axial Force Fa:

160 N

Product Or Component Type:

servo motor

Rohs Exemption Information:

Yes

Continuous Stall Current:

4.1 A

Nominal Output Power:

830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase

Nominal Torque:

2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase

Brake Pull-In Power:

7 W

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Peak Stall Torque:

11.3 N.m 115...480 V three phase

Shaft Length:

30 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Maximum Radial Force Fr:

1070 N 1000 rpm

[Us] Rated Supply Voltage:

115...480 V

Range Compatibility:

PacDrive 3

Stator Inductance:

14.6 mH

Holding Torque:

3 N.m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Catalog:

View

Datasheet:

View
