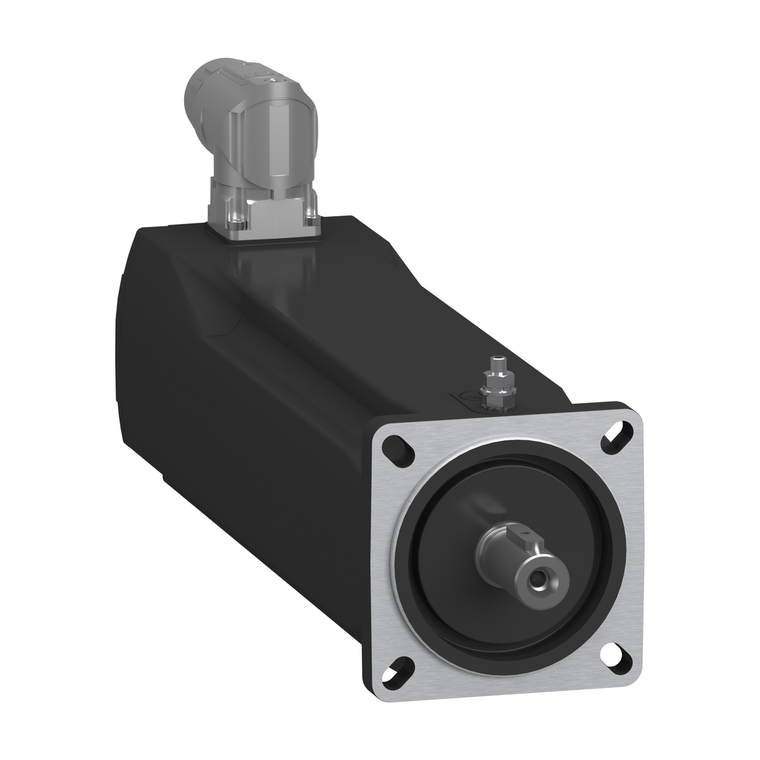

Schneider Electric SH30703P1AF4000 Sh3 Motor 070.3 Key Sgl Brk Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30703P1AF4000 Sh3 Motor 070.3 Key Sgl Brk Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30703P1AF4000

UPC:

3606481803573

MPN:

Condition:

New

Rotor Inertia:

0.807 kg.cm²

Circle Diameter Of The Mounting Holes:

82 mm

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Mercury Free:

Yes

Type Of Cooling:

natural convection

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Electrical Connection:

straight connector

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

SH3.....P

Encoder Type:

absolute single turn Hiperface DSL

Length:

246 mm

Centring Collar Diameter:

60 mm

Shaft Diameter:

14 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Radial Force Fr:

1050 N 1000 rpm

Centring Collar Depth:

2.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

servo motor

China Rohs Regulation:

X

Continuous Stall Current:

4.1 A

Range Compatibility:

PacDrive 3

Continuous Power:

1330 W

Brake Pull-In Power:

7 W

Pvc Free:

Yes

Speed Feedback Resolution:

262144 points/turn

Phase:

three phase

Mounting Support:

international standard flange

Number Of Motor Poles:

3

Shaft End:

parallel key

[Us] Rated Supply Voltage:

115...480 V

Maximum Axial Force Fa:

160 N

Stator Resistance:

2.7 Ohm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Torque:

2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Net Weight:

4.0 kg

Key Width:

5 mm

Environmental Disclosure:

ENVPEP111049EN

Mounting Holes Diameter:

5.5 mm

Number Of Mounting Holes:

4

Nominal Output Power:

830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase

Maximum Current Irms:

17 A

Motor Flange Size:

70 mm

Torque Constant:

0.72 N.m/A 120 °C

Holding Brake:

with

Peak Stall Torque:

11.3 N.m 115...480 V three phase

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Rohs Exemption Information:

Yes

Stator Inductance:

14.6 mH

Holding Torque:

3 N.m

Shaft Length:

30 mm

Maximum Mechanical Speed:

8000 rpm

Back Emf Constant:

49 V/krpm 20 °C
