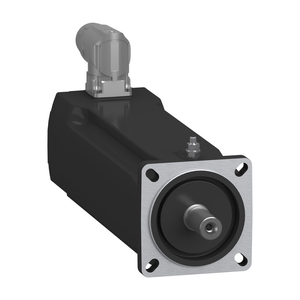

Schneider Electric SH30703P1BA4000 Sh3 Motor 070.3 Key Mlt Omc Ang Ip54

Schneider Electric SH30703P1BA4000 Sh3 Motor 070.3 Key Mlt Omc Ang Ip54

Schneider Electric
SKU:
SH30703P1BA4000
|
UPC:
3606481803610
$2,306.25
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 8000RPM and keyed shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 21.3A and a continuous power of 4040W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. it weighs 3.6kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Number Of Motor Poles:
3
Nominal Speed:
3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Centring Collar Depth:
2.5 mm
Rohs Exemption Information:
Yes
Torque Constant:
0.72 N.m/A 120 °C
Back Emf Constant:
49 V/krpm 20 °C
Length:
220 mm
Type Of Cooling:
natural convection
Number Of Mounting Holes:
4
Environmental Disclosure:
ENVPEP111049EN
Phase:
three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Maximum Mechanical Speed:
8000 rpm
Speed Feedback Resolution:
262144 points/turn x 4096 turns
Nominal Torque:
2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase
Mounting Support:
international standard flange
Electrical Connection:
straight connector
Shaft Length:
30 mm
Product Or Component Type:
servo motor
Circle Diameter Of The Mounting Holes:
82 mm
Centring Collar Diameter:
60 mm
Encoder Type:
absolute multiturn Hiperface DSL
Maximum Axial Force Fa:
160 N
Motor Flange Size:
70 mm
Rotor Inertia:
0.580 kg.cm²
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Diameter:
14 mm
Continuous Power:
1330 W
Range Compatibility:
PacDrive 3
Circularity Profile:
N/A
Mounting Holes Diameter:
5.5 mm
Stator Resistance:
2.7 Ohm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Stator Inductance:
14.6 mH
Holding Brake:
without
Net Weight:
3.6 kg
Maximum Radial Force Fr:
1070 N 1000 rpm
Key Width:
5 mm
Device Short Name:
SH3.....P
Shaft End:
parallel key
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
Continuous Stall Current:
4.1 A
Mercury Free:
Yes
Nominal Output Power:
830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase
[Us] Rated Supply Voltage:
115...480 V
Pvc Free:
Yes
Peak Stall Torque:
11.3 N.m 115...480 V three phase
Sustainable Offer Status:
Green Premium product
Maximum Current Irms:
17 A
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
