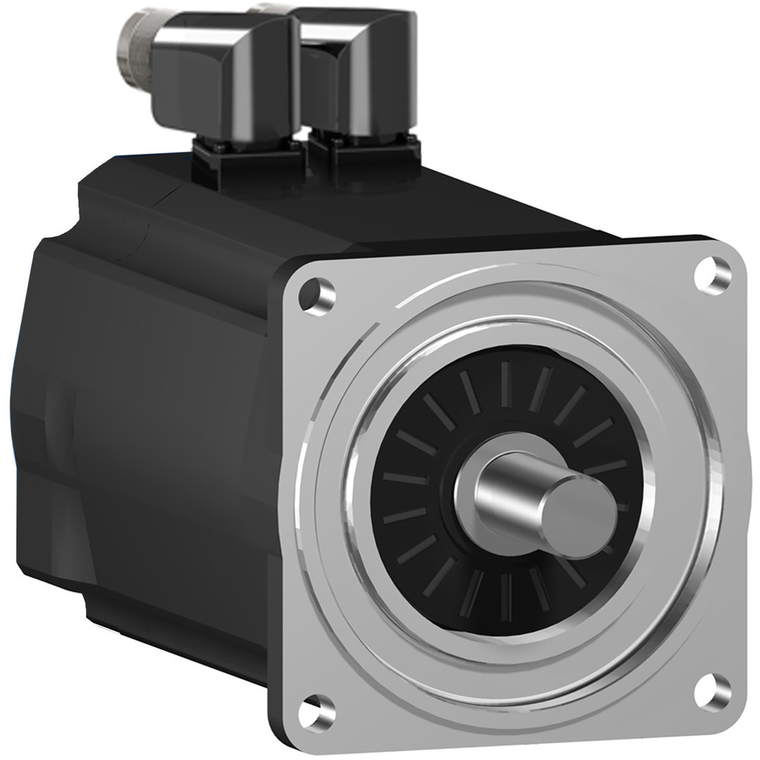

Schneider Electric SH31001P01A2200 Sh3 Motor 100.1 Sgl Ang Ip65
SKU:
SH31001P01A2200
UPC:
3606481972156
MPN:
Condition:
New
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shaft End:
smooth shaft
Maximum Mechanical Speed:
6000 rpm
Motor Flange Size:
100 mm
Nominal Speed:
1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Type Of Cooling:
natural convection
Continuous Stall Current:
3.5 A
Mounting Holes Diameter:
9.0 mm
Centring Collar Depth:
3.5 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
straight connector
Mounting Support:
international standard flange
Encoder Type:
absolute single turn SinCos Hiperface
[Us] Rated Supply Voltage:
115...480 V
Maximum Current Irms:
0
Product Or Component Type:
servo motor
Maximum Axial Force Fa:
160 N
Peak Stall Torque:
9.6 N.m 115...480 V three phase
Warranty:
18 months
Pvc Free:
Yes
Back Emf Constant:
60 V/krpm 20 °C
Range Compatibility:
PacDrive 3
Mercury Free:
Yes
Nominal Output Power:
410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
Shaft Length:
40 mm
Speed Feedback Resolution:
128 periods
Continuous Power:
1190 W
Stator Resistance:
3.8 Ohm
Number Of Mounting Holes:
4
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
Device Short Name:
SH3.....P
Environmental Disclosure:
ENVPEP111049EN
Rotor Inertia:
1.4 kg.cm²
Number Of Motor Poles:
4
Circularity Profile:
N/A
Centring Collar Diameter:
95 mm
Holding Brake:
without
Shaft Diameter:
19 mm
Torque Constant:
0.84 N.m/A 120 °C
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Phase:
three phase
Nominal Torque:
2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
