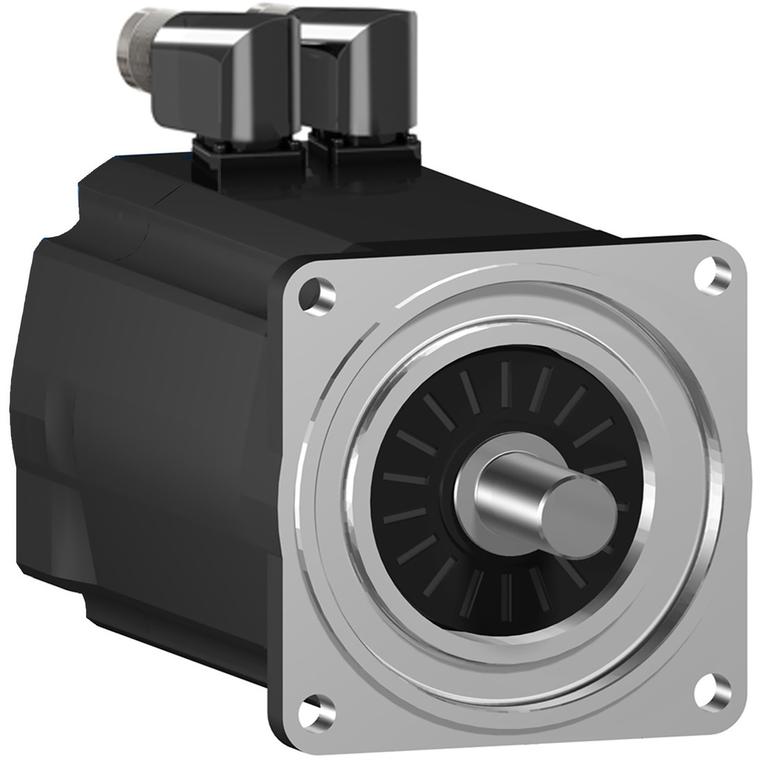

Schneider Electric SH31001P01F2200 Sh3 Motor 100.1 Sgl Brk Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31001P01F2200 Sh3 Motor 100.1 Sgl Brk Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31001P01F2200

UPC:

3606481972187

MPN:

Condition:

New

Centring Collar Depth:

3.5 mm

Maximum Axial Force Fa:

160 N

Back Emf Constant:

60 V/krpm 20 °C

Product Or Component Type:

servo motor

Stator Inductance:

27.15 mH

Mercury Free:

Yes

Rotor Inertia:

2.018 kg.cm²

Circle Diameter Of The Mounting Holes:

115 mm

Circularity Profile:

N/A

Phase:

three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP111049EN

Motor Flange Size:

100 mm

Length:

199.5 mm

Shaft End:

smooth shaft

Shaft Diameter:

19 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Poles:

4

Maximum Current Irms:

0

Mounting Support:

international standard flange

Nominal Speed:

1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase

Net Weight:

4.8 kg

Device Short Name:

SH3.....P

Type Of Cooling:

natural convection

[Us] Rated Supply Voltage:

115...480 V

Nominal Torque:

2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase

Shaft Length:

40 mm

Continuous Power:

1190 W

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Torque:

9 N.m

China Rohs Regulation:

X

Torque Constant:

0.84 N.m/A 120 °C

Pvc Free:

Yes

Mounting Holes Diameter:

9.0 mm

Peak Stall Torque:

9.6 N.m 115...480 V three phase

Centring Collar Diameter:

95 mm

Continuous Stall Current:

3.5 A

Maximum Mechanical Speed:

6000 rpm

Speed Feedback Resolution:

128 periods

Electrical Connection:

straight connector

Range Compatibility:

PacDrive 3

Number Of Mounting Holes:

4

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Stator Resistance:

3.8 Ohm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Brake:

with

Sustainable Offer Status:

Green Premium product

Encoder Type:

absolute single turn SinCos Hiperface

Nominal Output Power:

410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase

Warranty:

18 months
