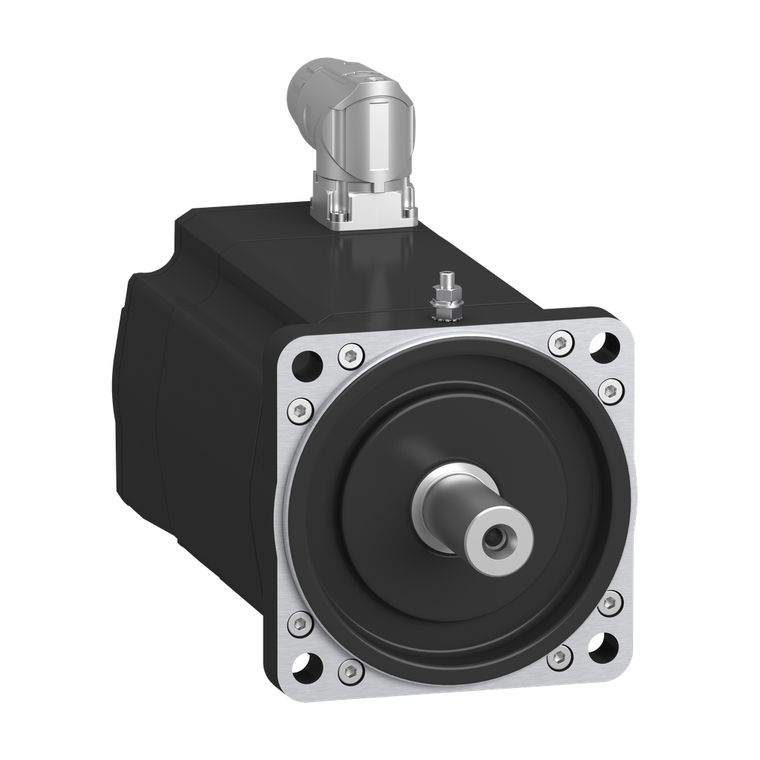

Schneider Electric SH31001P0BA4000 Sh3 Motor 100.1 Mlt Omc Ang Ip54

Schneider Electric SH31001P0BA4000 Sh3 Motor 100.1 Mlt Omc Ang Ip54

Schneider Electric
SKU:
SH31001P0BA4000
|
UPC:
3.60648E+12
$2,070.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and smooth shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 21A and a continuous power of 5500W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 4.3kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Number Of Mounting Holes:
4
Environmental Disclosure:
ENVPEP111049EN
Centring Collar Depth:
3.5 mm
Rohs Exemption Information:
Yes
Type Of Cooling:
natural convection
Peak Stall Torque:
9.6 N.m 115...480 V three phase
Centring Collar Diameter:
95 mm
Continuous Power:
1190 W
Speed Feedback Resolution:
262144 points/turn x 4096 turns
Rotor Inertia:
1.40 kg.cm²
Continuous Stall Current:
3.5 A
Shaft Length:
40 mm
Nominal Output Power:
690 W 230 V single phase || 1190 W 400 V three phase || 1190 W 480 V three phase
Mounting Holes Diameter:
9.0 mm
Maximum Current Irms:
0
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Diameter:
19 mm
Motor Flange Size:
100 mm
Torque Constant:
0.84 N.m/A 120 °C
Product Or Component Type:
servo motor
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
Nominal Speed:
2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Phase:
three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft End:
smooth shaft
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
Range Compatibility:
PacDrive 3
Maximum Mechanical Speed:
6000 rpm
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
4.3 kg
Encoder Type:
absolute multiturn Hiperface DSL
China Rohs Regulation:
X
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Electrical Connection:
straight connector
Stator Inductance:
19 mH
Device Short Name:
SH3.....P
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
115...480 V
Length:
168.5 mm
Nominal Torque:
2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
Back Emf Constant:
60 V/krpm 20 °C
Holding Brake:
without
Mounting Support:
international standard flange
Number Of Motor Poles:
4
Circle Diameter Of The Mounting Holes:
115 mm
Circularity Profile:
N/A
Stator Resistance:
3.8 Ohm
Maximum Axial Force Fa:
300 N
Maximum Radial Force Fr:
1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
Catalog:
View
Datasheet:
View
