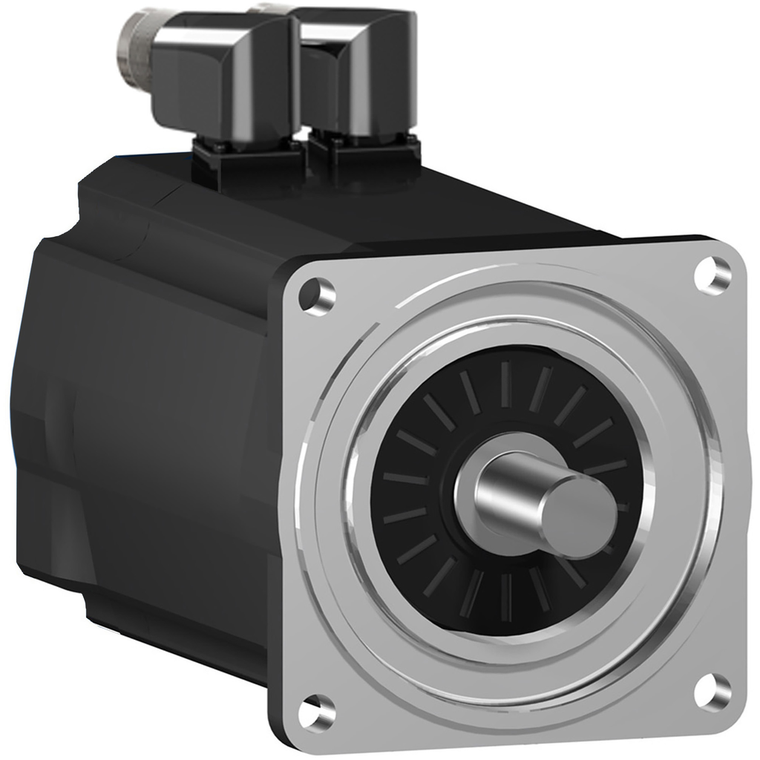

Schneider Electric SH31001P11A2200 Sh3 Motor 100.1 Key Sgl Ang Ip65

Schneider Electric SH31001P11A2200 Sh3 Motor 100.1 Key Sgl Ang Ip65

Schneider Electric
SKU:
SH31001P11A2200
|
UPC:
3.60648E+12
$1,964.86
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
servo motor SH3 100 2,94Nm,key,single,nobrake,90°conn.IP65/IP67,6k RPM
Additional Information
Type Of Cooling:
natural convection
Back Emf Constant:
60 V/krpm 20 °C
Phase:
three phase
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Maximum Axial Force Fa:
160 N
Stator Inductance:
27.15 mH
Number Of Motor Poles:
4
Environmental Disclosure:
ENVPEP111049EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Support:
international standard flange
Nominal Speed:
1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Pvc Free:
Yes
Product Or Component Type:
servo motor
Continuous Stall Current:
3.5 A
Net Weight:
4.3 kg
Shaft End:
parallel key
Key Width:
6 mm
Peak Stall Torque:
9.6 N.m 115...480 V three phase
Rohs Exemption Information:
Yes
Speed Feedback Resolution:
128 periods
Circle Diameter Of The Mounting Holes:
115 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Holding Brake:
without
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Holes Diameter:
9.0 mm
Centring Collar Depth:
3.5 mm
[Us] Rated Supply Voltage:
115...480 V
Centring Collar Diameter:
95 mm
Device Short Name:
SH3.....P
Stator Resistance:
3.8 Ohm
Warranty:
18 months
Torque Constant:
0.84 N.m/A 120 °C
Nominal Torque:
2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
Shaft Length:
40 mm
Electrical Connection:
straight connector
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shaft Diameter:
19 mm
Motor Flange Size:
100 mm
Range Compatibility:
PacDrive 3
Nominal Output Power:
410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
China Rohs Regulation:
X
Maximum Current Irms:
0
Maximum Mechanical Speed:
6000 rpm
Encoder Type:
absolute single turn SinCos Hiperface
Number Of Mounting Holes:
4
Length:
168.5 mm
Circularity Profile:
N/A
Continuous Power:
1190 W
Rotor Inertia:
1.4 kg.cm²
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
