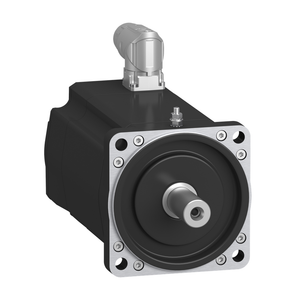

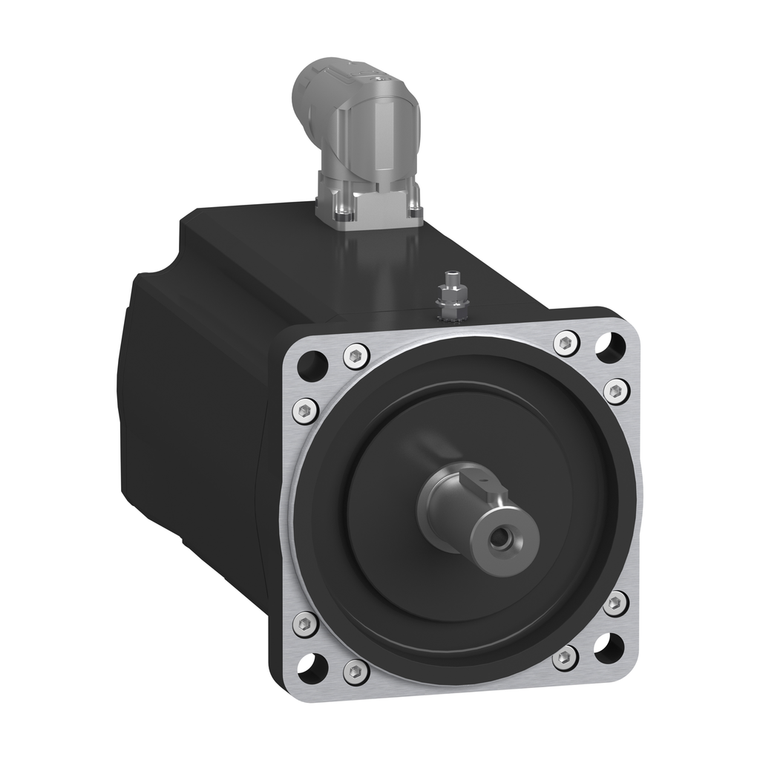

Schneider Electric SH31001P1BA4000 Sh3 Motor 100.1 Key Mlt Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31001P1BA4000 Sh3 Motor 100.1 Key Mlt Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31001P1BA4000

UPC:

3606481803931

MPN:

Condition:

New

Centring Collar Diameter:

95 mm

China Rohs Regulation:

X

Type Of Cooling:

natural convection

Continuous Stall Current:

3.5 A

Circle Diameter Of The Mounting Holes:

115 mm

Mercury Free:

Yes

Mounting Support:

international standard flange

Circularity Profile:

N/A

Key Width:

6 mm

Holding Brake:

without

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Rohs Exemption Information:

Yes

Motor Flange Size:

100 mm

Maximum Current Irms:

0

Maximum Radial Force Fr:

1340 N 3000 rpm || 2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pvc Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

4.3 kg

Encoder Type:

absolute multiturn Hiperface DSL

Maximum Axial Force Fa:

300 N

Nominal Speed:

2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft End:

parallel key

Stator Resistance:

3.8 Ohm

Range Compatibility:

PacDrive 3

[Us] Rated Supply Voltage:

115...480 V

Environmental Disclosure:

ENVPEP111049EN

Nominal Torque:

2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase

Device Short Name:

SH3.....P

Torque Constant:

0.84 N.m/A 120 °C

Mounting Holes Diameter:

9.0 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Shaft Length:

40 mm

Number Of Mounting Holes:

4

Phase:

three phase

Centring Collar Depth:

3.5 mm

Length:

168.5 mm

Product Or Component Type:

servo motor

Maximum Mechanical Speed:

6000 rpm

Sustainable Offer Status:

Green Premium product

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Nominal Output Power:

690 W 230 V single phase || 1190 W 400 V three phase || 1190 W 480 V three phase

Peak Stall Torque:

9.6 N.m 115...480 V three phase

Back Emf Constant:

60 V/krpm 20 °C

Stator Inductance:

19 mH

Rotor Inertia:

1.40 kg.cm²

Electrical Connection:

straight connector

Number Of Motor Poles:

4

Continuous Power:

1190 W

Shaft Diameter:

19 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Catalog:

View

Datasheet:

View
