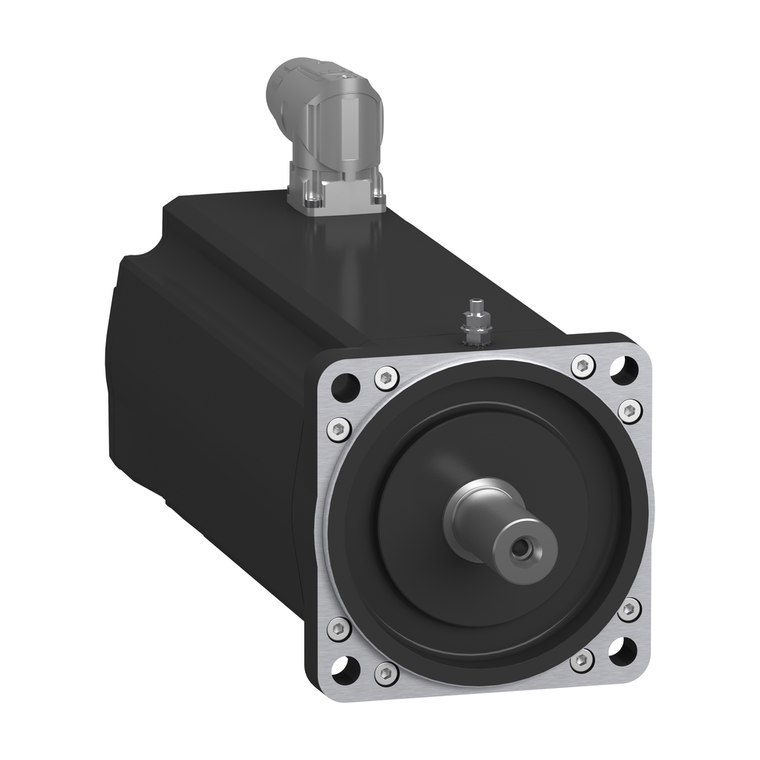

Schneider Electric SH31002P0BF4100 Sh3 Motor 100.2 Mlt Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31002P0BF4100 Sh3 Motor 100.2 Mlt Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31002P0BF4100

UPC:

3.60648E+12

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Torque:

9 N.m

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Holding Brake:

with

Pvc Free:

Yes

Stator Resistance:

2.4 Ohm

Mounting Support:

international standard flange

Rotor Inertia:

2.928 kg.cm²

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Centring Collar Diameter:

95 mm

Electrical Connection:

straight connector

China Rohs Regulation:

X

Length:

235.5 mm

Nominal Output Power:

1090 W 230 V single phase || 1930 W 400 V three phase || 1930 W 480 V three phase

Motor Flange Size:

100 mm

Back Emf Constant:

77 V/krpm 20 °C

Nominal Torque:

5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Encoder Type:

absolute multiturn Hiperface DSL

Sustainable Offer Status:

Green Premium product

Circle Diameter Of The Mounting Holes:

115 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Centring Collar Depth:

3.5 mm

Device Short Name:

SH3.....P

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Phase:

three phase

Stator Inductance:

13.5 mH

Brake Pull-In Power:

12 W

Continuous Power:

1930 W

Mercury Free:

Yes

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Mounting Holes Diameter:

9.0 mm

[Us] Rated Supply Voltage:

115...480 V

Maximum Radial Force Fr:

2960 N 2000 rpm || 2580 N 3000 rpm || 3730 N 1000 rpm

Maximum Axial Force Fa:

740 N

Shaft End:

smooth shaft

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Stall Current:

4.8 A

Environmental Disclosure:

ENVPEP111049EN

Maximum Current Irms:

17.1 A

Shaft Diameter:

19 mm

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Torque Constant:

1.21 N.m/A 120 °C

Range Compatibility:

PacDrive 3

Net Weight:

6.6 kg

Maximum Mechanical Speed:

6000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Mounting Holes:

4

Product Or Component Type:

servo motor

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Cooling:

natural convection

Number Of Motor Poles:

4

Shaft Length:

40 mm

Catalog:

View

Datasheet:

View
