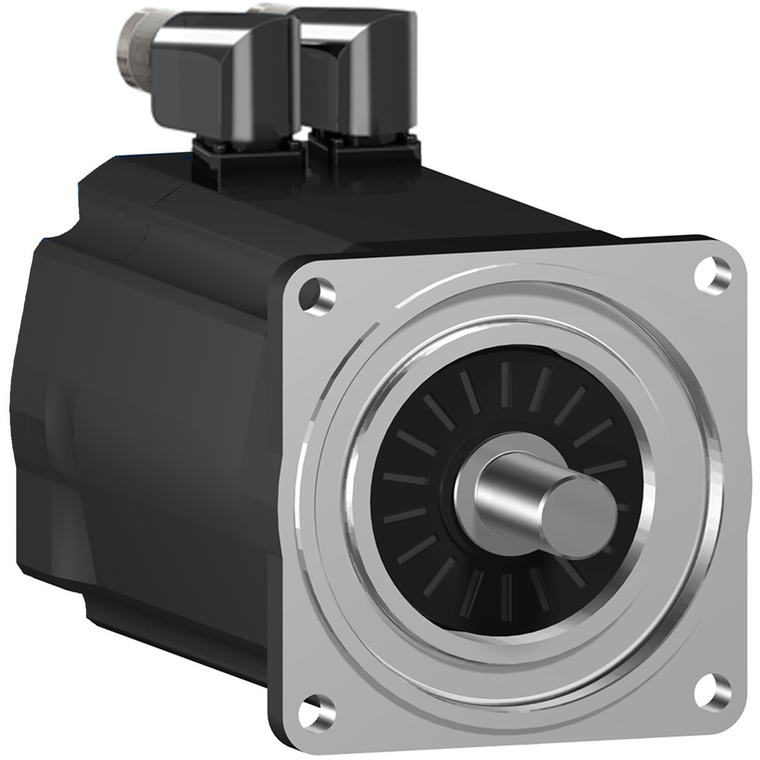

Schneider Electric SH31002P12F2000 Sh3 Motor 100.2 Key Mlt Brk Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31002P12F2000 Sh3 Motor 100.2 Key Mlt Brk Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31002P12F2000

UPC:

3606485296838

MPN:

Condition:

New

Continuous Power:

1900 W

Shaft End:

parallel key

Circle Diameter Of The Mounting Holes:

115 mm

Phase:

three phase

Length:

234.5 mm

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Pvc Free:

Yes

Nominal Torque:

5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Mercury Free:

Yes

Encoder Type:

absolute multiturn SinCos Hiperface

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Rotor Inertia:

2.928 kg.cm²

Rohs Exemption Information:

Yes

Speed Feedback Resolution:

128 periods

Shaft Diameter:

19 mm

Centring Collar Diameter:

95 mm

Type Of Cooling:

natural convection

Holding Torque:

9 N.m

Motor Flange Size:

100 mm

Environmental Disclosure:

ENVPEP111049EN

Electrical Connection:

rotatable right angled connector

Stator Resistance:

2.4 Ohm

Maximum Axial Force Fa:

160 N

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm

Continuous Stall Current:

4.8 A

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 IEC 60034-5 || motor IP65 IEC 60034-5 || shaft bushing IP65 IEC 60034-5

Stator Inductance:

19.5 mH

Key Width:

6 mm

Warranty:

18 months

China Rohs Regulation:

X

Nominal Output Power:

580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase

Mounting Support:

international standard flange

[Us] Rated Supply Voltage:

115...480 V

Back Emf Constant:

77 V/krpm 20 °C

Centring Collar Depth:

3.5 mm

Sustainable Offer Status:

Green Premium product

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Net Weight:

6.3 kg

Holding Brake:

with

Number Of Motor Poles:

4

Range Compatibility:

PacDrive 3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

9.0 mm

Device Short Name:

SH3.....P

Product Or Component Type:

servo motor

Circularity Profile:

N/A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Torque Constant:

1.21 N.m/A 120 °C

Shaft Length:

40 mm

Maximum Mechanical Speed:

6000 rpm

Number Of Mounting Holes:

4

Maximum Current Irms:

17.1 A
