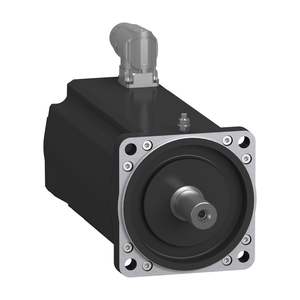

Schneider Electric SH31002P1BA4000 Sh3 Motor 100.2 Key Mlt Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31002P1BA4000 Sh3 Motor 100.2 Key Mlt Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31002P1BA4000

UPC:

3606481804259

MPN:

Condition:

New

Number Of Mounting Holes:

4

Electrical Connection:

straight connector

Number Of Motor Poles:

4

Mounting Holes Diameter:

9.0 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Motor Flange Size:

100 mm

Length:

204.5 mm

Phase:

three phase

Shaft Diameter:

19 mm

Torque Constant:

1.21 N.m/A 120 °C

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Continuous Power:

1930 W

Key Width:

6 mm

Mercury Free:

Yes

Circularity Profile:

N/A

Device Short Name:

SH3.....P

Maximum Mechanical Speed:

6000 rpm

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Rotor Inertia:

2.31 kg.cm²

Nominal Torque:

5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Range Compatibility:

PacDrive 3

Pvc Free:

Yes

Stator Inductance:

13.5 mH

Type Of Cooling:

natural convection

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Shaft End:

parallel key

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

international standard flange

Circle Diameter Of The Mounting Holes:

115 mm

[Us] Rated Supply Voltage:

115...480 V

Shaft Length:

40 mm

Maximum Axial Force Fa:

300 N

China Rohs Regulation:

X

Centring Collar Depth:

3.5 mm

Continuous Stall Current:

4.8 A

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Nominal Output Power:

1090 W 230 V single phase || 1930 W 400 V three phase || 1930 W 480 V three phase

Stator Resistance:

2.4 Ohm

Holding Brake:

without

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Encoder Type:

absolute multiturn Hiperface DSL

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP111049EN

Rohs Exemption Information:

Yes

Maximum Current Irms:

17.1 A

Product Or Component Type:

servo motor

Net Weight:

5.9 kg

Back Emf Constant:

77 V/krpm 20 °C

Maximum Radial Force Fr:

2660 N 1000 rpm || 2110 N 2000 rpm || 1840 N 3000 rpm

Centring Collar Diameter:

95 mm
